Dell Chromebook 11-3120 Daughterboard Replacement

Geschrieben von: Mitchell Stevens
  • Kommentare: 0
Dell Chromebook 11-3120 Daughterboard Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

The USB port allows for small amounts of data to be transferred from computer to computer via a USB drive. Sometimes these drives do not connect properly due to a broken motherboard. Here is a guide on how to properly replace the motherboard.

  1. 6utaA1NGCadsqx3H
    6utaA1NGCadsqx3H
    ZuduPXqPs4kvEKH1

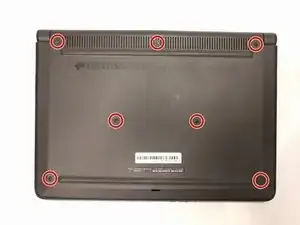

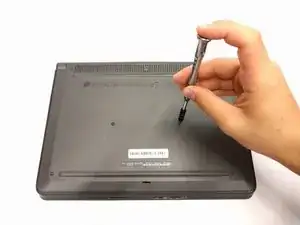

    • Use the #J0 screwdriver to unscrew the seven 4mm screws located around the back panel.

  2. HWtQKSLbCrZ1NMys
    HWtQKSLbCrZ1NMys
    wti6JJIFndYD2PTS

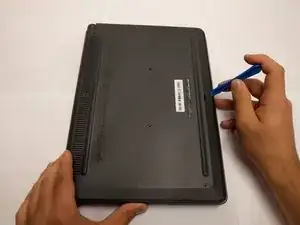

    • Use the plastic opening tool to gently pry around the four sides of the back panel until the panel is fully released.

    • Taking the back cover off of the computer may require more force than expected. When using the opening tool, be careful not to use too much force on it, and make sure all the screws are removed.

  3. MygVA3bZtHkrNp1h
    MygVA3bZtHkrNp1h
    bEl4GwMbobFmSGGO

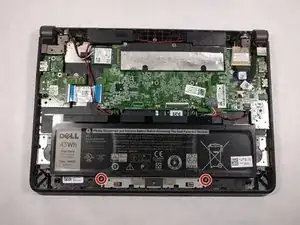

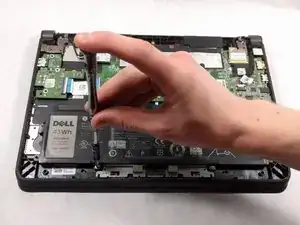

    • Using a JIS #0 screwdriver, unscrew the two 4mm screws securing the battery in place.

  4. qK1l2xfV6OSnOQK1

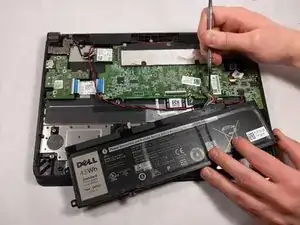

    • Using the pointed end of a #2 spudger, remove the connection between the battery and motherboard by slightly pulling on the wires while pushing the tiny hole down using the spudger.

    • Pull out the battery from inside the laptop.

  5. romiy1fsLKUKlOnp
    romiy1fsLKUKlOnp
    ouFkAgJIF1UYxMhD

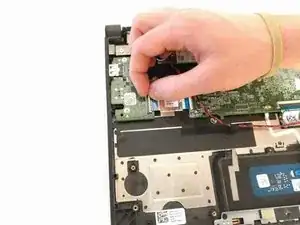

    • Disconnect the bridge connection ribbon cable from the motherboard.

  6. GrubIpcpTIY5DX1x
    GrubIpcpTIY5DX1x
    5CKDbNUMNG6bAkgC

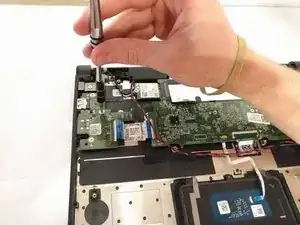

    • Using a JIS #0 screwdriver, unscrew the three 4mm screws securing the daughterboard in place.

  7. ZgvU1PKQIQR6ZMhG

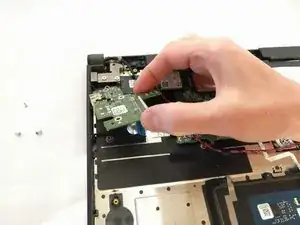

    • Carefully lift out the daughterboard with the right-hand USB port from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
