Dell Chromebook 13 3380 Battery Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Chromebook 13 3380 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

  1. 6CTPgMoFOuuscgxO

  2. tmFFbPquyDVLnJ2k

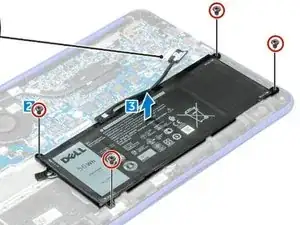

    • Remove the M2.0x3.0 screws that secure the battery to the computer.

  3. bBU1XhQkSUYHnMNK

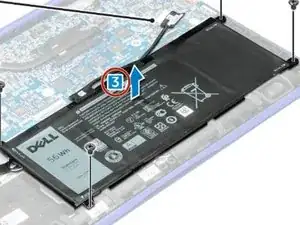

    • Lift the battery away from the computer.

  4. U36eQvaOP2idWTQl

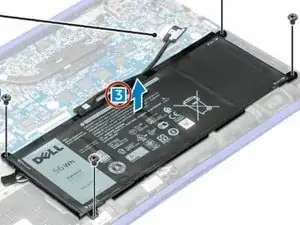

    • Insert the NEW battery into the slot on the computer.

  5. NJTlJGSEcyTaLXAo

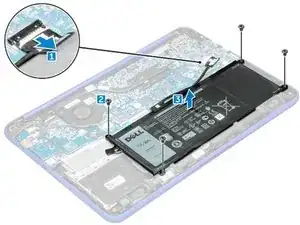

    • Connect the battery cable to the connector on the battery.

  6. SMWubSHPFStAWUmd

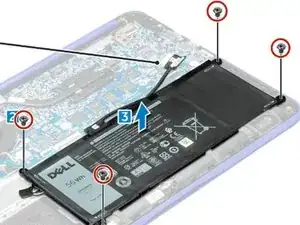

    • Tighten the M2.0xL3 screws to secure the battery to the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
