Dell Chromebook 13-7310 Screen Replacement

Geschrieben von: Kayla McDaniel
  • Kommentare: 1
Dell Chromebook 13-7310 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

15 - 20 Minuten

Einleitung

If the screen on your Dell Chromebook 13-7310 is cracked, pixelated, or fails to display material properly, use this replacement guide to replace it.

  1. T1YNMaefltnQpMwW
    T1YNMaefltnQpMwW
    Z3SHpkTZu4j1IWwS
    JitULDaEvMRuC5yH

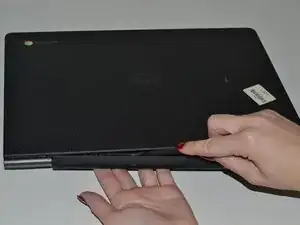

    • To remove the screen, start by using the black nylon spudger to pry off the plastic hinge cover. This allows easy removal of the screen cover.

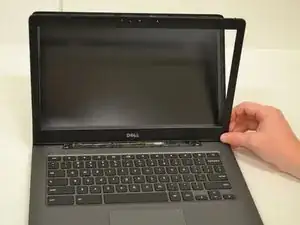

    • Using the same spudger and your finger nails, gently pry the outer casing around the screen itself. Once it is 1/3 to 1/2 of the way removed, gently pull the rest free by hand.

    • There will be popping/snapping sounds when removing. This is normal, just be careful not the crack any plastic or the cover may not reinstal properly.

    • Once the clips are undone, remove the cover and you are ready for the next step!

  2. YLAK2srElBMXhe5y
    YLAK2srElBMXhe5y
    rUH3EaUZyU2EBTFh

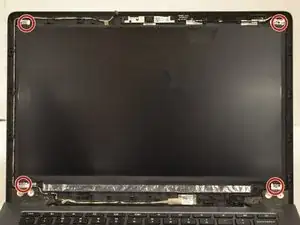

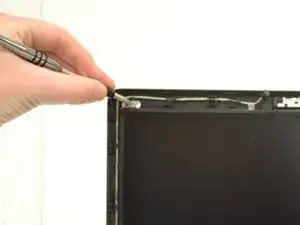

    • Now that the cover is removed, use the #1 Philips screwdriver bit to remove the four, 3mm screws located at each corner of the screen.

    • To keep from losing the screws it is best to place them o a electronics rated magnetic work pad. If you do not have access to such a pad a plastic bottle cap works just fine.

  3. lucoGvLBOFvoLkrH
    lucoGvLBOFvoLkrH
    ajDtoSQZBLNPEgIV
    jLOiQRumWGjaHEQO

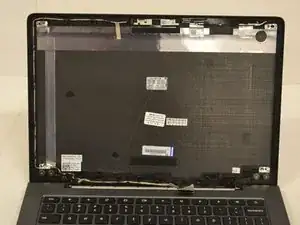

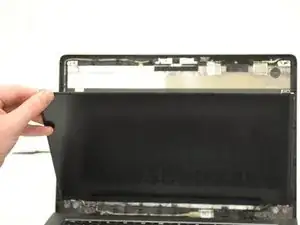

    • Now that the screws are removed, gently lay the screen face down on the keyboard. It is best to lay a cloth on the keyboard first to keep debris form entering the keyboard.

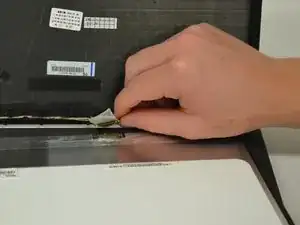

    • After laying down the screen, carefully disconnect the ribbon cable located at the bottom middle of the display screen by pulling straight back towards the laptop cover.

    • Be gentle, if the ribbon cable is damaged in the removal it will need to be replaced as well for the new display to work.

Abschluss

Congratulations! You have successfully removed the screen of your Dell Chromebook 13-7310. To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kayla McDaniel

Mitglied seit: 08/09/17

213 Reputation

Ein Kommentar

Hi,

If I have an i3 with non-touch matte display Dell Chromebook 7310 and an i5 touch glossy display, is it possible to swap the displays/lids so that the i5 has the non-touch matte display?

Axl R -
