Dell Chromebook 13-7310 IO Board Replacement

Geschrieben von: Damon
  • Kommentare: 0
Dell Chromebook 13-7310 IO Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

Having trouble with your headphones or USB ports? The Input/output board may be the source of your problem. Here is a quick an easy guide to replace your IO board, and get your devices working again!

  1. wFwuXOCJhN4ZCDDO
    wFwuXOCJhN4ZCDDO
    taajDEMBCRwj1GSB

    • Remove the eleven 3mm Phillips #1 screws.

  2. IklIfhBrAj5DLrtO

    • Use a plastic opening tool to gently remove the back panel.

    • It can be easier to pry open near a corner.

  3. YZYOqG5uPrJw5SJI

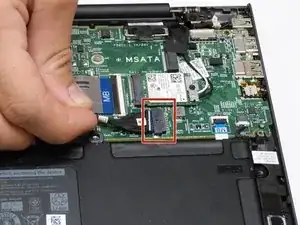

    • Use your fingers to remove the connecting cable to the battery unit. Firmly grab the cord closest to the motherboard connection and pull straight back.

  4. g2fZcr46CLTGnpjY

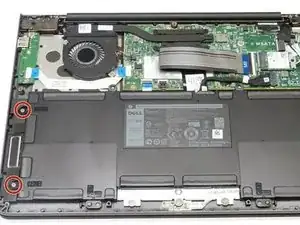

    • Remove the four 2mm screws on the sides of the battery.

  5. m1IIZHdXEdUgSAIb

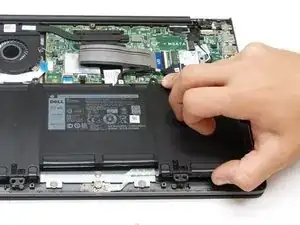

    • To remove the battery, lift up on one side to get your fingers underneath and lift away.

  6. UEQn52DNrAoraVTh

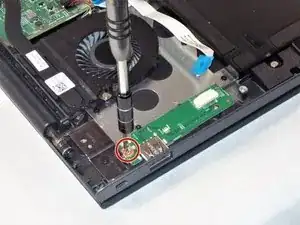

    • Remove the single 2mm screw securing the IO board to the laptop.

  7. vFPBMZxsXeJA26TD

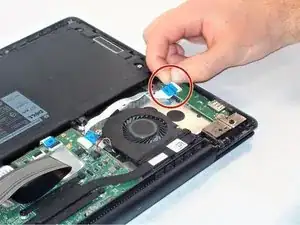

    • Pull up on the connector to release the IO board cable from the motherboard.

    • It may be easier to pull from the blue tab.

  8. ZROMxkmiHfUZmcgn

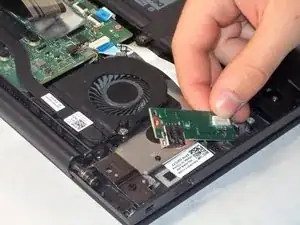

    • Remove the IO board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
