Dell Chromebook 13-7310 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

25

Zeitaufwand

40 Minuten - 1 Stunde

Einleitung

Having trouble with broken or stick keys on your keyboard? This guide will provide you simple step-by-step instructions on replacing your keyboard for the Chromebook 13-7310.

  1. wFwuXOCJhN4ZCDDO
    wFwuXOCJhN4ZCDDO
    taajDEMBCRwj1GSB

    • Remove the eleven 3mm Phillips #1 screws.

  2. IklIfhBrAj5DLrtO

    • Use a plastic opening tool to gently remove the back panel.

    • It can be easier to pry open near a corner.

  3. YZYOqG5uPrJw5SJI

    • Use your fingers to remove the connecting cable to the battery unit. Firmly grab the cord closest to the motherboard connection and pull straight back.

  4. g2fZcr46CLTGnpjY

    • Remove the four 2mm screws on the sides of the battery.

  5. m1IIZHdXEdUgSAIb

    • To remove the battery, lift up on one side to get your fingers underneath and lift away.

  6. DuRFxmNSMV5sCuJP

    • Gently pull to unplug fan connector.

  7. IsRTe3rj3aiGQbUT
    IsRTe3rj3aiGQbUT
    5WfUb2Wv5kHNcQto

    • Remove 4 screws securing heat sink.

  8. YysFiBpbtyFXTfYS

    • Lift away heat sink.

  9. QVtmsDNPvlSAIIsP

    • Remove the eight 2mm screws securing the motherboard in place.

  10. BAgv5UEAjLj6eWee

    • Release cable for the LED charging indicator by pulling up on connector.

  11. VQZWrWtKrGwXJnDJ

    • Gently remove the cable.

  12. bFMNgDcplYgNMJ2B

    • Pull up on connector tab to release IO board cable.

  13. varHRi5AXOcuyWaW
    varHRi5AXOcuyWaW
    J6tuLejCTS2gyIbe

    • Pull up on connector tab to release touchpad cable.

  14. V1iwIpfpNnCN1BGq

    • Release the keyboard backlight cable.

  15. F6hxhF4D1wPZGQP6
    F6hxhF4D1wPZGQP6
    KYxSXVaQKakkpnQI

    • Release the keyboard cable.

    • If taped to the motherboard, gently peel it off.

  16. K6jRlUO5h1DV4skc

    • Release eDP cable.

  17. BBoITJJqOuBFK4wm

    • Release dc-in cable.

  18. NTxjdXDOJTaSv2AN

    • Gently lift up the motherboard to remove it.

  19. 41OMPl3hwVTUihDn
    41OMPl3hwVTUihDn
    VjaPHkkn3uXEIFNt

    • Using the #1 Philips screwdriver, remove the two, 2mm screws securing the fan assembly.

  20. hsIQcZMBCnY66CSQ
    hsIQcZMBCnY66CSQ
    JohgMJIGJnAcWEaS

    • Using your fingernails, pull the cooling fan cables loose from the motherboard.

    • We have the tweezers pictured to allow for a clear view of components. DO NOT use the tweezers to remove the cables, they could be damaged in the process.

    • Finally, lift the fan assembly away from the computer.

  21. UEQn52DNrAoraVTh

    • Remove the single 2mm screw securing the IO board to the laptop.

  22. vFPBMZxsXeJA26TD

    • Pull up on the connector to release the IO board cable from the motherboard.

    • It may be easier to pull from the blue tab.

  23. ZROMxkmiHfUZmcgn

    • Remove the IO board.

  24. Pvc6UmQQPORH33ex

    • Remove all screws.

    • All screws for the keyboard will have a "K" next to them.

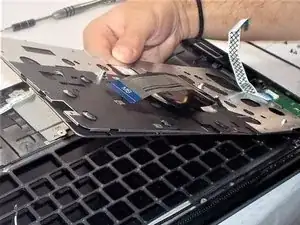

  25. FePgRu5ZWFO3v6VL

    • Gently lift up the keyboard and remove.

    • This step does not require much force. If you have to use a lot of force to lift the keyboard, check to make sure you didn't miss a screw.

Abschluss

To reassemble your device, follow these instructions in reverse order.
