Einleitung
Use this guide to replace your broken web cam with a new one to get reconnected face-to-face with your friends and family!
Werkzeuge
-
-

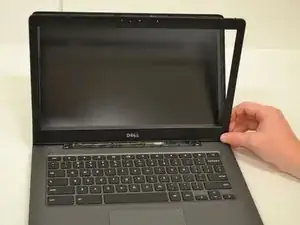

To remove the screen, start by using the black nylon spudger to pry off the plastic hinge cover. This allows easy removal of the screen cover.
-

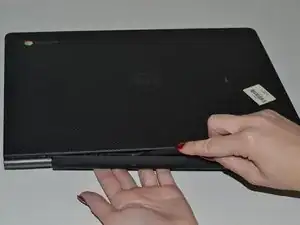

Using the same spudger and your finger nails, gently pry the outer casing around the screen itself. Once it is 1/3 to 1/2 of the way removed, gently pull the rest free by hand.
-

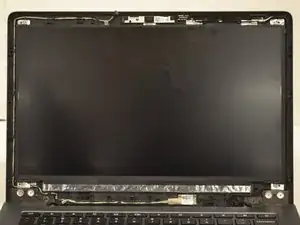

Once the clips are undone, remove the cover and you are ready for the next step!
-
-
-

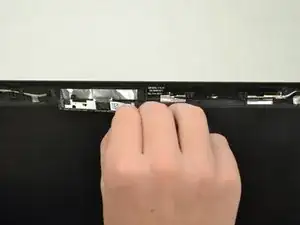

Now that the camera is exposed, disconnect the wire by hand to untether the camera unit from the motherboard.
-

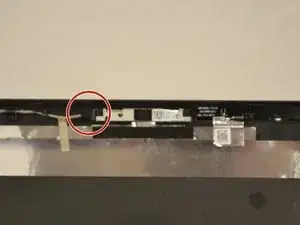

To disconnect, pull to the straight back from the camera connection point.
-
-
-

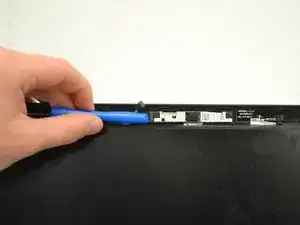

Once you have disconnected the camera, use the small nylon pry bar to dislodge the camera assembly from the computer housing.
-

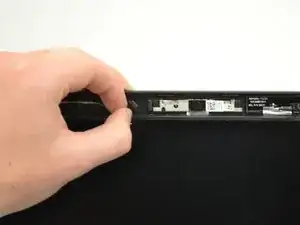

After the camera assembly is free from the backing plate, remove it from the housing bay hand.
-
Congratulations! You have successfully removed the web camera of your Dell Chromebook 13-7310. To reassemble your device, follow these instructions in reverse order.
