Dell Chromebook 3100 (Touch) Battery Replacement

Geschrieben von: Isaac
  • Kommentare: 0
Dell Chromebook 3100 (Touch) Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

  1. HDk4SYkjI2gUxXVH
    HDk4SYkjI2gUxXVH
    qmUhD6LDuPqBBTYQ

    • Unscrew the nine PH#0 captive screws on the bottom of the device.

    • Use a pick to run along the outside of the device popping all the clips. Prying should not be necessary.

  2. GD3OIQF2QLHCrkIe
    GD3OIQF2QLHCrkIe
    KvMr5ABUrAN5ORx2

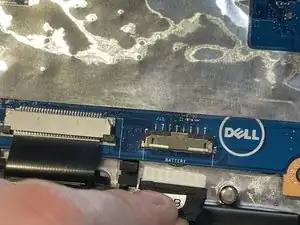

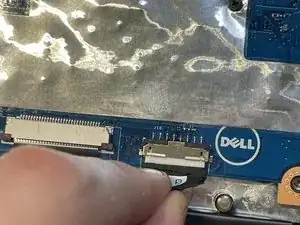

    • Pull carefully, but firmly, on the battery cable until it becomes detached.

  3. Fjfgb3i4fi426wWK

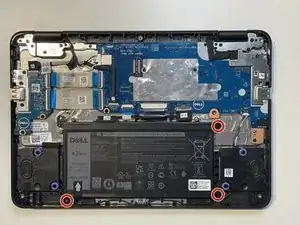

    • Remove these three M2x5 screws and take the battery out

    • If your replacement battery doesn't come with a cable, you will need to remove the cable from the old battery before disposing of it.

    • DO NOT throw batteries in the trash. Take them to a proper battery recycling center.

Abschluss

To reassemble your device, follow these instructions in reverse order.
