Dell Chromebook 3100 2-in-1 Motherboard Replacement

Geschrieben von: Muhammad Ali
  • Kommentare: 1
Dell Chromebook 3100 2-in-1 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

10 Minuten

Einleitung

Follow this guide to remove and replace the motherboard in the Dell Chromebook 3100 2-in-1 laptop.

For your safety, discharge your battery below 25% before disassembling it. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair.

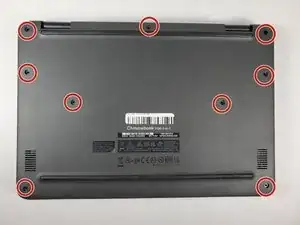

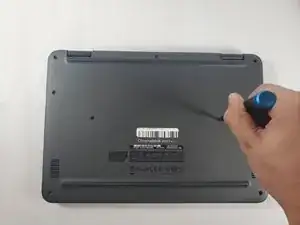

  1. 35GMAvsVHPsJiHoE
    35GMAvsVHPsJiHoE
    e13exPtRjAyhV3SC

    • Using a Phillips #1 screwdriver, remove all nine of the 5 mm screws from the back cover.

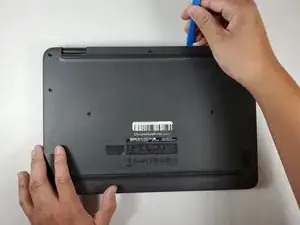

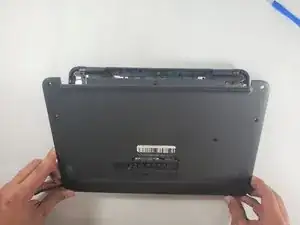

  2. ai1BGM6LCRjlqP2t
    ai1BGM6LCRjlqP2t
    Z2ZBJgaTQZJEKQvZ

    • Use the opening tool to pry the back cover off of the device.

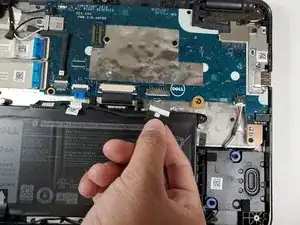

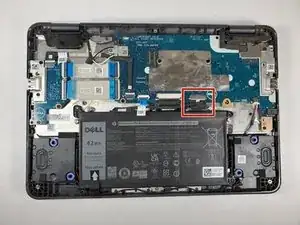

  3. BwIeAPu5gFhqpPcj
    BwIeAPu5gFhqpPcj
    lExO6yW2kI3ZZkZt

    • Disconnect the battery cable from the connector on the system board.

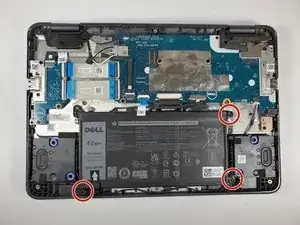

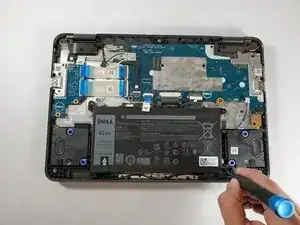

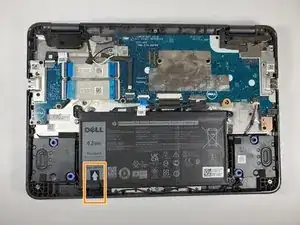

  4. I2ntSQfPcmBmZIpM
    I2ntSQfPcmBmZIpM
    LmWWKI13iegJcoXX
    1A3EC1VAyiEtcfAE

    • Using a Phillips #1 screwdriver, remove the three 4 mm screws that secure the battery.

    • Remove the adhesive tape that secures the battery in place.

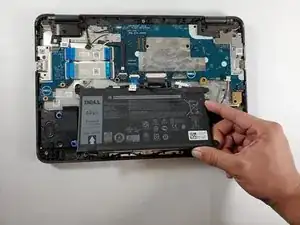

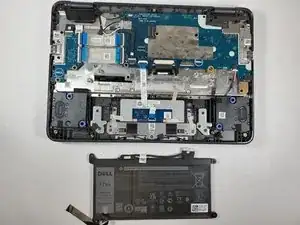

  5. dKbtxoqUhyAQoytk
    dKbtxoqUhyAQoytk
    PoPLga335pniU5f5

    • Carefully remove the battery from the device.

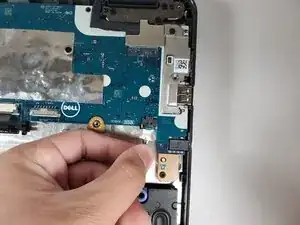

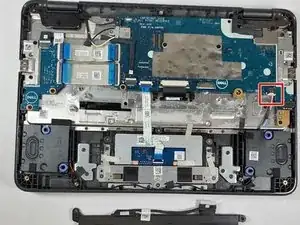

  6. 3b4ArGFcmMiEgXrO
    3b4ArGFcmMiEgXrO
    jOiMUrCbQpJIBBUv

    • Remove adhesive tape that secures the speaker cable.

    • Disconnect the speaker cable from the connector on the system board.

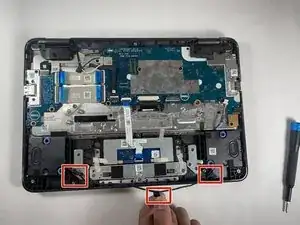

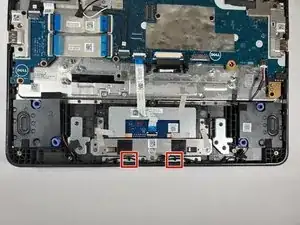

  7. tu5A2ZIauSqaWrnk
    tu5A2ZIauSqaWrnk
    hjNHFLF1gKPy1vLX

    • Remove the speaker cable from the retention clips.

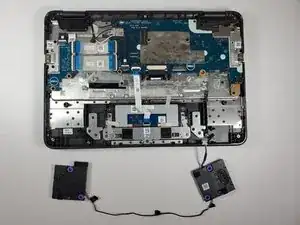

  8. HSDVAwONRTG356I4
    HSDVAwONRTG356I4
    OcpcXMQTSW4n2LBS

    • Lift and remove the speakers from the device.

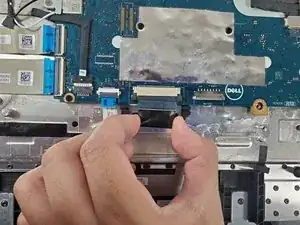

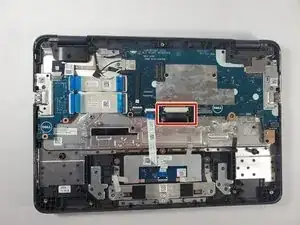

  9. HWUCuFK5f2Lrn2SP
    HWUCuFK5f2Lrn2SP
    sKOX5POeMyBAHgUW
    CHMIUPDCbC6q2QFf

    • Disconnect the keyboard cable.

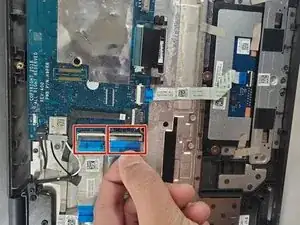

  10. bfmASe4Qn2fnVVUR

    • Disconnect the two input-output board cables from the motherboard.

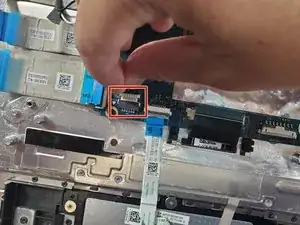

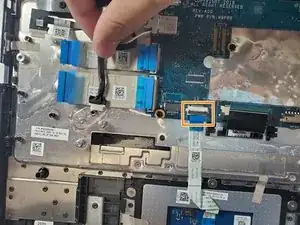

  11. KSLYZ5QYvEQvrLBo
    KSLYZ5QYvEQvrLBo
    ZwI2JiUvpCuQaoCN

    • Disconnect the touchpad cable.

    • Disconnect the USB Type-C power cable.

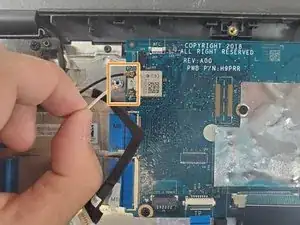

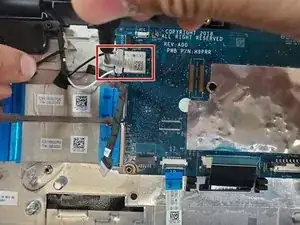

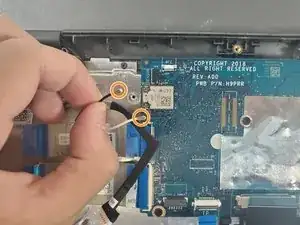

  12. leVfer4v1Sf4QCfS
    leVfer4v1Sf4QCfS
    TKgjEBYxXJ2fXC3S
    PacDIUH2gCCQ1xrJ

    • Remove the single 3 mm screw that secures the WLAN bracket to the system board using a Phillips #1 screwdriver.

    • Lift the WLAN bracket from the system board.

    • After lifting the bracket, carefully unplug the two coaxial cables.

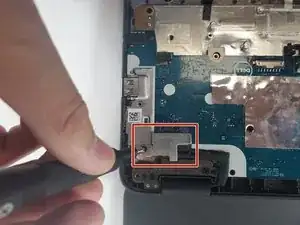

  13. dCsm4JKjl1uFLYju

    • Remove the single 4 mm screw that secures the eDP bracket to the motherboard using a Phillips #1 screwdriver.

    • Remove the eDP bracket.

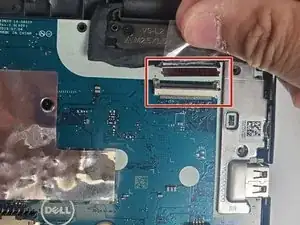

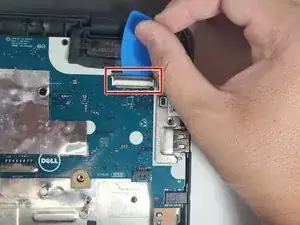

  14. kubBeJNXIJL5ubvm
    kubBeJNXIJL5ubvm
    n1FEi1osTvLZJuMx

    • Disconnect the display cable from the motherboard by using a plastic opening pick.

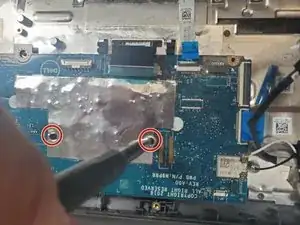

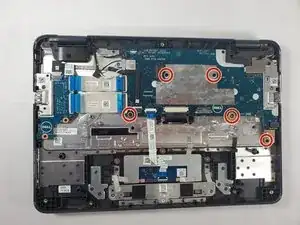

  15. jb1IwPyTSgi3UxjX
    jb1IwPyTSgi3UxjX
    GTctCauYBCdbVjFo
    dlDiAYXyHFKPE2Mh

    • Remove the five 4 mm screws that secure the motherboard using a Phillips #1 screwdriver.

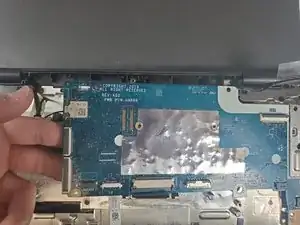

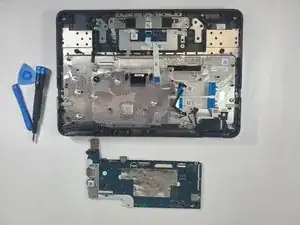

  16. 6N2Geov41SiTAPXQ
    6N2Geov41SiTAPXQ
    gQgJ5jALE4NZR1tn

    • Lift and remove the motherboard from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
