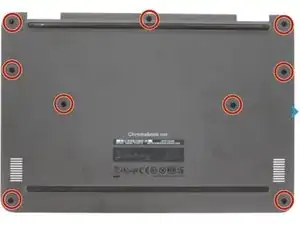

Remove the 9 screws from the back cover with the Phillips #0 screwdriver. NOTE* You do not need to remove the screws completely as you just need to loosen them enough to remove the cover.
-

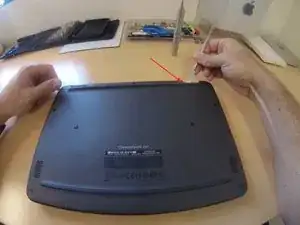

Once all 9 screws have been loosened, you can start to pry apart the back cover with your metal or plastic blade. I like to start from the top right hinge area. (See pic)
-
-
-
Remove the 3 battery screws with a Phillips #0 screwdriver.
-
Temporarily disconnect the bottom left corner battery sticker. NOTE* You will need to reconnect this sticker when installing the new battery.
-
-
-

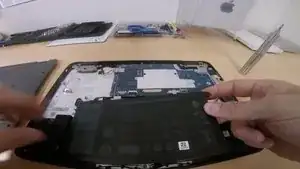

Lift the battery out from the palmrest. NOTE* You may feel some resistants while trying to remove the battery. There is a double-sided sticky tape pad located underneath the battery in the top left corner. (See video)
-
Disconnect the motherboard battery cable from the top of the battery.
-
To reassemble your device, follow these instructions in reverse order.
