Einleitung
This guide will aid you in replacing your Dell Chromebook 5190 speaker.
The Dell Chromebook 5190 was released alongside its sister model Dell Chromebook 5190 2-in-1. This guide will focus on the 5190 model that lacks a touchscreen.
In order to help you hear your audio clearly, you need functioning speakers. Audio may be distorted for a number of reasons, be sure to check this device's troubleshooting page to check for possible solutions. If you are still experiencing these issues after troubleshooting, you may need to replace your speaker.
Werkzeuge
Ersatzteile
-
-
With the opening tool, pry open the upper left corner by the laptop hinge.
-
With the opening tool, pry open the upper right corner by the laptop hinge.
-
Lift off base cover.
-
-
-
Unscrew and remove the M2x3 screw holding the silver metal brackets labeled "Battery Bracket" located on the top left side of the battery.
-
Unscrew and remove the M2x3 screw holding the silver metal brackets labeled "Battery Bracket" located on the top right side of the battery.
-
-
-
Remove the clear adhesive tape on the system board from the battery cable from where it's seated above the battery.
-
Pull out the keyboard cable toward you to disconnect it.
-
-
-
Remove the black adhesive tape on the system board from the battery cable.
-
Dismount the cable from where it's seated above the battery.
-
-
-
Unscrew and remove the four M2x3 screws on each corner of the battery.
-
Dismount the battery.
-
-
-

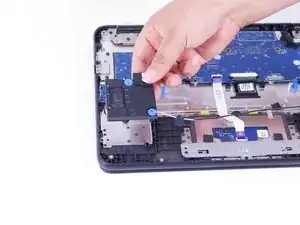

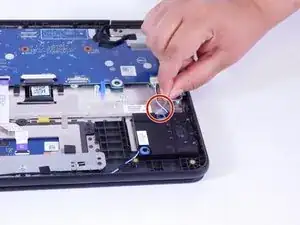

Peel the clear adhesive tape that secures the speaker cables.
-

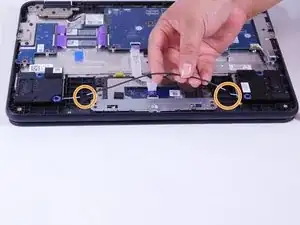

Peel the 2 black adhesive tapes near the bottom of the system.
-
-
-

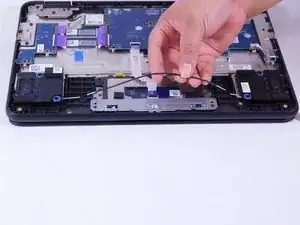

Unroute the speaker cable from the speaker connectors.
-

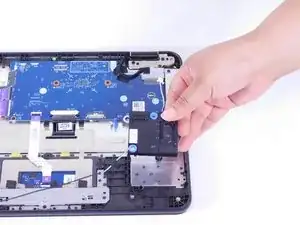

Lift the speaker away from the system.
-
To reassemble your device, follow these instructions in reverse order.
