Dell Desktop XPS 420 CD/DVD Drive Replacement

Geschrieben von: CrichtonMichael
  • Kommentare: 1
Dell Desktop XPS 420 CD/DVD Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

How to remove or replace CD/DVD drives for the Dell Desktop XPS 420.

  1. 4ZkYKjvGsbsOBybT

    • Ensure that your computer is unplugged. Also be sure you are grounded against static discharge

    • Stand your case upright in an area with some space.

    • Remove the side panel by pushing the release on the top of the case outwards. Once the side panel is released, remove it and set it aside.

    The Dell XPS 410 is the same…

    Joe Hoffman -

  2. wuY5KhpPd2Te3A3Z
    wuY5KhpPd2Te3A3Z
    1lYhKpRDdeuIEjv4

    • Remove the power cable for the CD/DVD drive you wish to remove/replace, located on the rear of the drive.

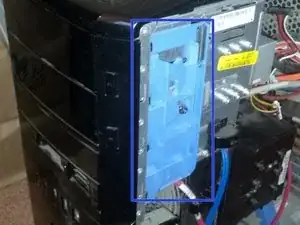

    • This is the drive release mechanism, adjacent to the drive panel and the drive bay.

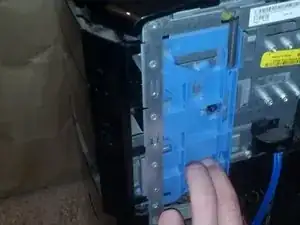

    • Release the drive panel by pulling down on the drive release mechanism.

  3. o6lxWFp3bvuGwdgX
    o6lxWFp3bvuGwdgX
    jLVhuXtjVk33F3Kb

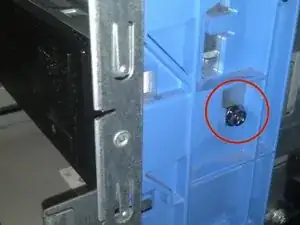

    • There is a single screw on the right-hand side of the drive that fits into the drive release mechanism.

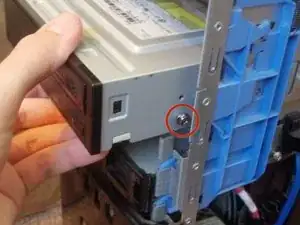

    • Simultaneously pull down on the drive release mechanism and pull the drive gently out of the drive bay.

  4. gEryNoZxpYhmp3tj
    gEryNoZxpYhmp3tj
    x65EOPtdD65Jo11K
    CGhB4S1BJgCJC5Wg

    • If you wish to insert a different CD/DVD drive, make sure the screws are set in this orientation:

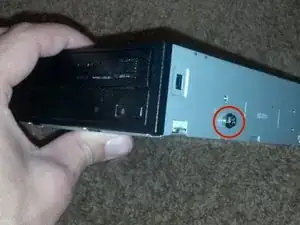

    • One screw on the right-hand side.

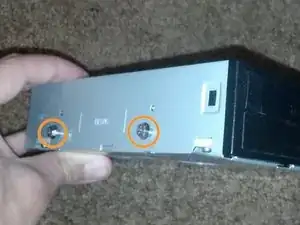

    • Two screws on the left-hand side.

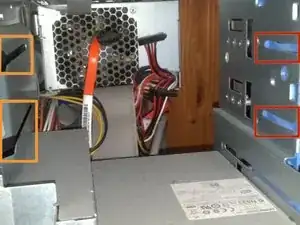

    • The screws will slide into these slits in the drive bay interior.

Abschluss

To reassemble your device, follow these instructions in reverse order.
