Dell Dimension 4600 Fan Replacement

Geschrieben von: Tim
  • Kommentare: 1
Dell Dimension 4600 Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

Use this guide to replace the fan inside of your Dell Dimension 4600.

  1. ElUsnSBAWaLOJXGZ

    • Locate the case cover latch on the back of the computer.

  2. dQSgkSKowwTTofLD

    • Using your index finger, slide and hold the cover latch down.

    • While holding the latch down, place your other hand flat on the side of the case and firmly shift the side panel to the left until it disengages.

  3. 2XHnKDCCY2yrDobL

    • Grab the edge of the panel and slide it away from the case until it is removed.

  4. eVcYxffrQYe3Eo2x

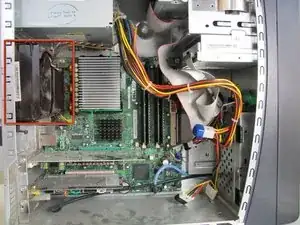

    • Lay the computer flat on it's side so that you are looking down at all of the components.

    • Locate the fan and its black, red, and white power cable.

  5. LoU6eP2XZqHpJts5

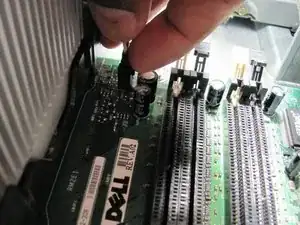

    • Follow the power cable to the motherboard connection and remove it by pressing down on the clip.

  6. wgFXhIxDHZySv6vy

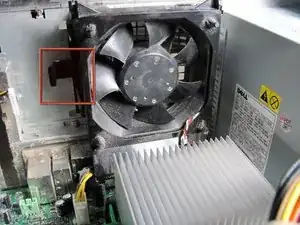

    • Locate the release clip on the side of the fan and hold it down with your thumb.

  7. YsBhKAMMK1ghMNcR

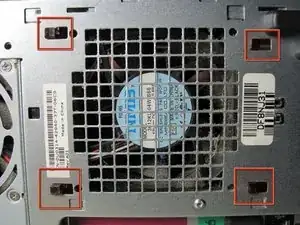

    • While holding the release clip down, look on the outside of the case where the fan lies.

    • Using the four black notches as a reference, slide the fan towards the open side releasing the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
