Dell Dimension 4600 RAM Replacement

Geschrieben von: Daniel Crawford
  • Kommentare: 1
Dell Dimension 4600 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace the RAM in your Dell Dimension 4600.

  1. ElUsnSBAWaLOJXGZ

    • Locate the case cover latch on the back of the computer.

  2. dQSgkSKowwTTofLD

    • Using your index finger, slide and hold the cover latch down.

    • While holding the latch down, place your other hand flat on the side of the case and firmly shift the side panel to the left until it disengages.

  3. 2XHnKDCCY2yrDobL

    • Grab the edge of the panel and slide it away from the case until it is removed.

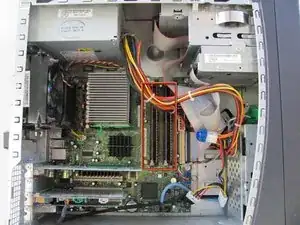

  4. o52ywo4midAx4nkk

    • Lay the computer flat on its side so that you are looking down on all of the components.

    • Locate the RAM modules on the motherboard.

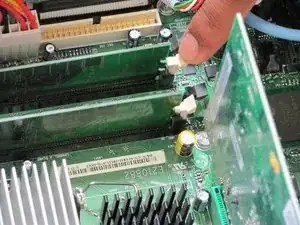

  5. bfVRIwHZxImCsaiE
    bfVRIwHZxImCsaiE

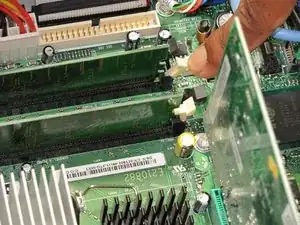

    krbfMOkkOqAkXsOw

    • Locate the white or black tabs holding the RAM module in place.

    • Place your index finger on the tab and firmly press down. The tab should release and the RAM module should be slightly raised.

    • Repeat this for the tab on the other side of the RAM module.

    • Repeat this step for each RAM module.

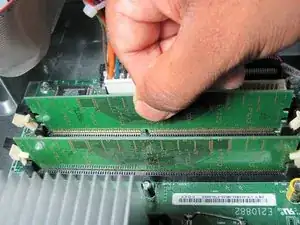

  6. wOkVKFbmKLlvXTZZ
    wOkVKFbmKLlvXTZZ

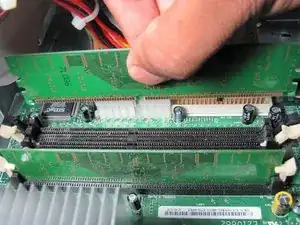

    6GgOXhDMLFOXSyTD

    • Grasp the RAM module and firmly pull upwards until it is released from its slot.

    • Repeat this step for each RAM module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
