Dell G15-5510 Gaming Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide demonstrates how to remove the back cover to your Dell G15-5510 Gaming laptop.

  1. GHCENn3pj1uBgRrk
    GHCENn3pj1uBgRrk
    oDYggyd2LrwbHP6l

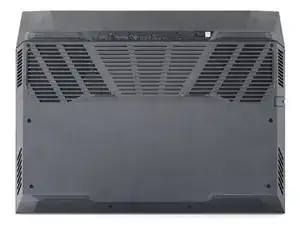

    • For your safety, discharge the battery below 25% and power down your device before disassembly.

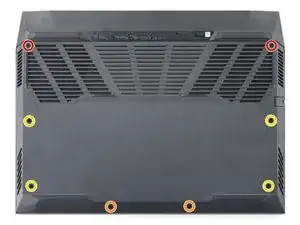

    • Use a Phillips #1 screwdriver to remove the four screws securing the back cover.

    • Two 8 mm screws

    • Two 5.8 mm screws

    • Loosen the four captive screws.

  2. CEymspn2XWtbGvp2
    CEymspn2XWtbGvp2
    SK3V5Q3UHUcMICZD

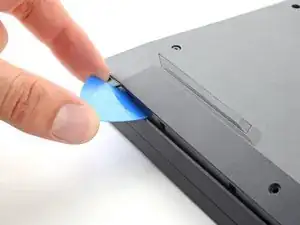

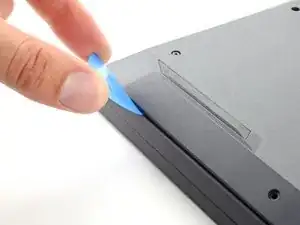

    • Insert an opening pick between the bottom-left corner of the back cover and the chassis.

    • Pry upward to release clips holding the cover in place.

    • Listen for a loud click to indicate a clip being released.

  3. LOHAE2KJJYowggUn
    LOHAE2KJJYowggUn
    xvrQYxMaSBA1K6eS

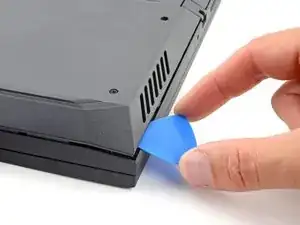

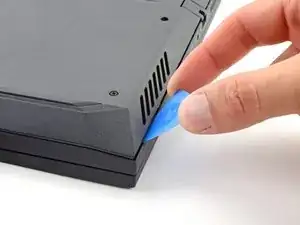

    • Insert your opening pick again between the bottom-right corner of the back cover and the chassis.

    • Pry up to release the remaining clips securing the back cover.

  4. HSLo4YUXWQvYsyXj
    HSLo4YUXWQvYsyXj
    ABiaa6ykfi41DCDQ
    vXyD2JSCIOICxsrW

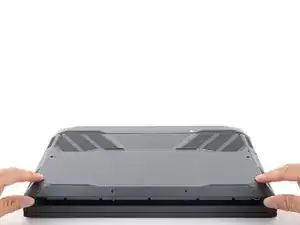

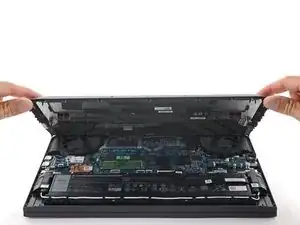

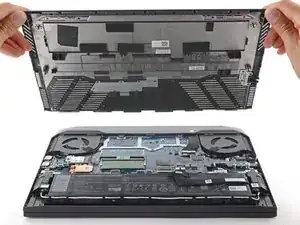

    • Grip the front of the back cover and lift it away from the laptop.

    • Pull the back cover towards you to disconnect the clips along the top of the back cover.

    • Remove the back cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Dell laptop answers community for help.
