Dell G5 5000 Gaming PC Ram Replacement

Geschrieben von: Matthew Figueiras
  • Kommentare: 0
Dell G5 5000 Gaming PC Ram Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 15 Minuten

Einleitung

Use this guide to replace or upgrade the system memory or ram in your Dell G5 5000 Gaming Desktop.

The RAM (Random Access Memory) is a component inside the computer that supplies information for the processor (or CPU) to use. Faulty ram in the system can cause the full amount of memory to not appear in task manager or can cause the system to fail to start altogether. You may also see the ram usage in task manager and if this usage is very high. If the full amount of ram is showing, this may indicate you need to replace the ram with higher modules.

This system uses DDR4 Ram and supports both 2666MHz and 2933MHz. You can also use 3200MHz ram however it will run at the lower 2666MHz and 2933MHz. This device supports configuration capacities of 8GB to 128GB. The amount of memory per module that this PC supports is between 4GB and 32GB

Make sure to turn the computer off before you begin with this guide.

  1. FKgImuTKUIStIWfC
    FKgImuTKUIStIWfC
    ZLOHOFECqmsNRqha

    • Unplug any cables plugged into the computer.

    • Place the computer system on its side to have easier access to the internals.

  2. OtuyTjQLrDPGKmDP
    OtuyTjQLrDPGKmDP
    HkNQd3M3auJEvMCp

    • Unscrew the captive thumbscrews counterclockwise until they become loose and hang down from the holes.

  3. ZfLV6cDWG6H1CsLK
    ZfLV6cDWG6H1CsLK
    W2yTjPvAoXqcjWuA
    HNnCZJUBYTUuiyXe

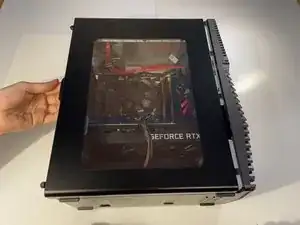

    • Use the handle on the back of the system and pull it towards the back of the computer to slide panel to the side.

    • Lift the side panel up to remove it off the system.

  4. IKQjGpOrUSTxMtq5
    IKQjGpOrUSTxMtq5
    ZvSRTFx3oQDWbVtA
    fAdY3IKUvoBRR3gy

    • Push down on both latch clips next to the ram stick.

  5. 54SRl3Ap5BdjxGU6
    54SRl3Ap5BdjxGU6
    ZAlsxvYYO34cNy2Q

    • Remove the stick of ram by lifting it from the socket.

    • Avoid holding the stick from the flat sides, instead, hold it from the edges since you could statically shock the module and damage it.

  6. xjQNCC45eVDFItjZ
    xjQNCC45eVDFItjZ
    VBAVO5aYZFIWWHUR

    • Line the module up with the slot making sure the stick is the right way and the gap matches on both the slot and the module.

    • Gently place the bottom side of the stick in first followed by the top side.

    • The gap in the ram module is slightly closer to one side of the stick than the other. The side this gap is closer to is the bottom side.

  7. jBQdQPnLHLcxlq1p
    jBQdQPnLHLcxlq1p
    BGTV5vAOTGTQXlpq

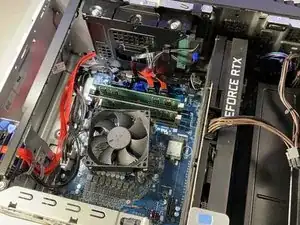

    • Firmly push down on the stick of ram until you hear an audible click from both sides.

    • As you push the stick down, the latches next to the slot should move back into their original positions.

  8. PZWg2ZS4pasfGi3N

    • If you need to replace multiple sticks of RAM, repeat steps 4 through 7 for your other sticks of ram.

Abschluss

To reassemble your device, follow steps 1 and 2 in reverse order.
