Dell Inspirion 15z-5523 Battery Replacement

Geschrieben von: Christian Chavez
  • Kommentare: 4
Dell Inspirion 15z-5523 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

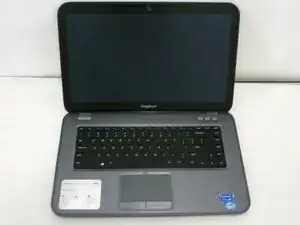

Einleitung

This tutorial covers the process of replacing a Dell Inspiron 15z-5523 battery.  As with all batteries after multiple charging and discharging cycles, the battery will eventually begin to lose the ability to hold a charge.  The older the battery the more likely they are to begin to show this performance deterioration.

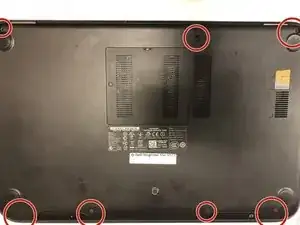

  1. Y5GWtRUEXyp4RAgT

    • Remove all rubber stoppers and screw from the back of the laptop

    I had to open the memory bay. Inside was another sc new labeled KB, that had to be unscrewed.

    markus -

  2. CYoiBjyP6bNnPcDj
    CYoiBjyP6bNnPcDj
    Y5ZrPKOo5ggoNmQD

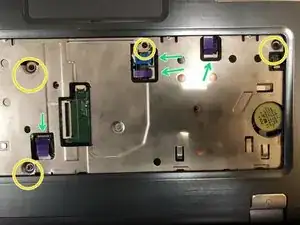

    • Detach keyboard from the laptop

    • Unscrew 4 screws on the metal frame (yellow circles)

    • Disconnect the 4 data connections (teal arrows)

  3. O3JJbJDnWPBEGFTA

    • Remove top computer frame

    I had to remove the DVD-Bay and there was a very flat screw holding the frame, that had to be removed.

    markus -

  4. tQMR4ovjq6ZOeSxO
    tQMR4ovjq6ZOeSxO
    6Oi5JqlkQXYXsZRU

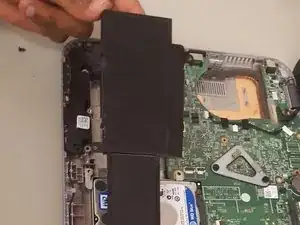

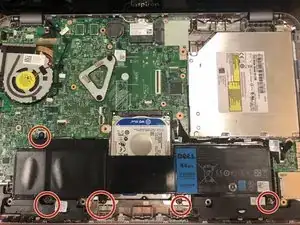

    • Remove the 5 screws that holding the old battery

    • Gently lift up battery and pull it out

Abschluss

To reassemble your device, follow these instructions in reverse order.
