Einleitung

  1. qvfQXKdRkToGLDRe
    • First turn over your computer and remove all of the rubber stoppers on the back.

  2. beDKRBE6Mk5J3DmH

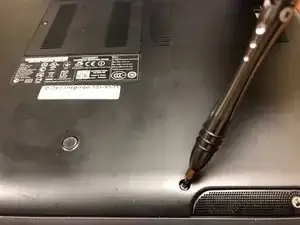

    • Then remove all the screws that were under the rubber stoppers.

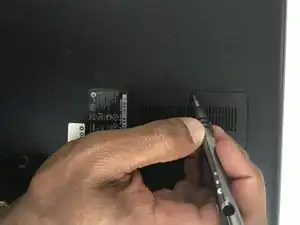

  3. uRleOZOVJC6BT16t
    • Take the screw out of the back plate.

  4. pDMracWyHXbLTYQJ

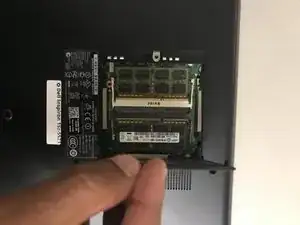

    • Remove back plate by grabbing and lifting up.

  5. ywtCoBHgefHVELD5

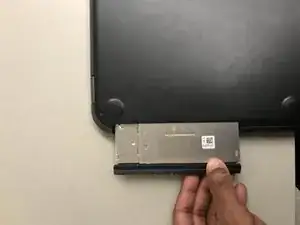

    • Remove CD port by pulling it straight out.

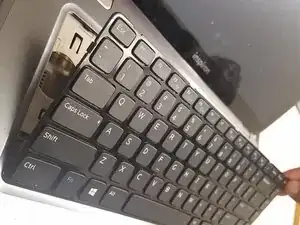

  6. KJxXkXS2Q23nlLNS
    • Remove the keyboard.

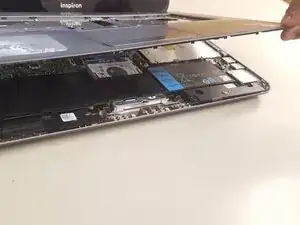

  7. SysGCApbhcVEPSRZ
    • Take screw out of the surface below the keyboard and remove the top layer of the computer off of the base.

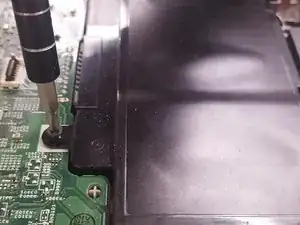

  8. AM6yT4eiooX6sOrD
    • Remove the battery by unscrewing the 5 screws and pull straight out.

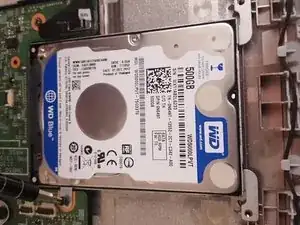

  9. NtlfoFABF3iP6bEa
    • Remove the three screws from the hard drive and remove by pulling straight out.

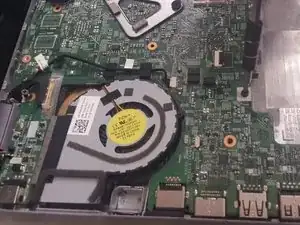

  10. FtZL6Cu4WMsIhVRM
    FtZL6Cu4WMsIhVRM

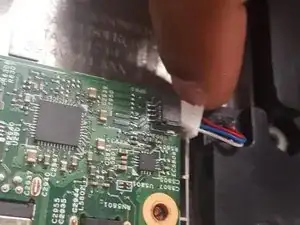

    1sVXjZCMHOu5kyRb
    • Unscrew motherboard and remove the two clips.

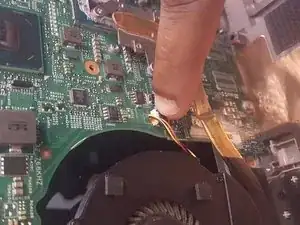

  11. 3XPQPkbAOTwIPijS
    3XPQPkbAOTwIPijS
    Iyh2ujUvEtPp5ExR

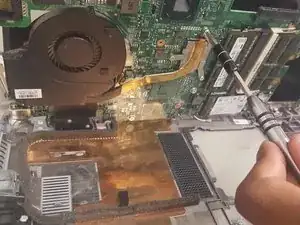

    • Flip motherboard up, unscrew the three screws, and unclip the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
