Dell Inspiron 10z 1120 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 10z 1120 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

9 - 25 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. 3MySdBaUZIormMVC

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Disconnect the Mini-Card antenna cables from the Mini-Card(s).

  2. 2wdgcgFfddxZjnHb

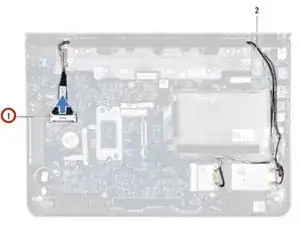

    • Make note of the cable routing and carefully dislodge the Mini-Card antenna cables from the routing guides.

  3. XaXYYaYONcXGBCPx

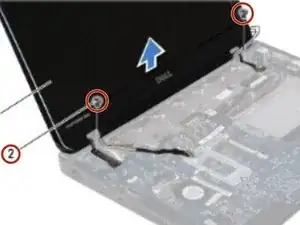

    • Remove the two screws (one on each side) that secure the display assembly to the computer base.

  4. FGbQioSDvBWxbFeL

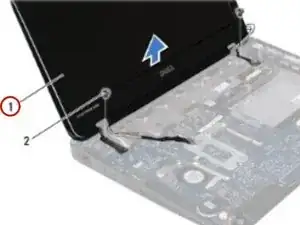

    • Lift and remove the display assembly off the computer base.

  5. dmZY6FYDoksdEQBs
    dmZY6FYDoksdEQBs
    PkSNXiyfnZnR3GhE

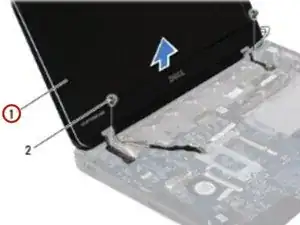

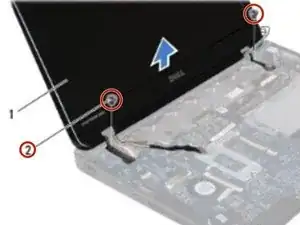

    • Place the NEW display assembly in position and replace the two screws (one on each side) that secure the display assembly to the computer base.

  6. VVByVyOrnffUoiYZ

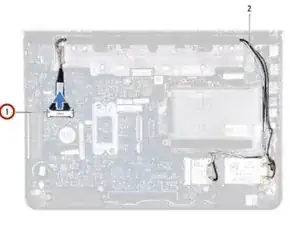

    • Connect the display cable to the system board connector.

  7. DAqyYK6JmKOIC3sN

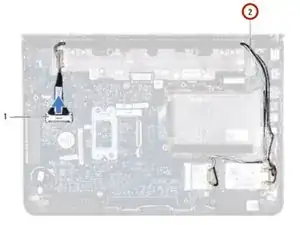

    • Route the Mini-Card antenna cables through the routing guides on the computer base.

  8. s5AdPlIaaswy3HUp

    • Connect the Mini-Card antenna cables to the Mini-Card(s).

Abschluss

To reassemble your device, follow these instructions in reverse order.
