Dell Inspiron 10z 1120 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 10z 1120 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

9 - 25 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. BJfKRqB4ndbxWqwB

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Remove the two screws that secure the hard-drive assembly to the computer base.

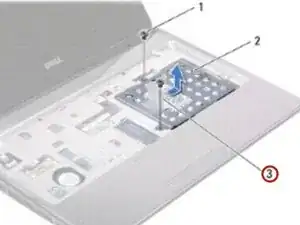

  2. 15wXswjrLMEtLX1n

    • Using the pull-tab, slide the hard-drive assembly to the side to disconnect it from the connector on the system board.

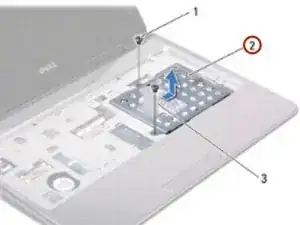

  3. tZkWcpBJGcmOo2HX

    • Lift the hard-drive assembly out of the computer base.

  4. q26LBGrM1XoUd5o6

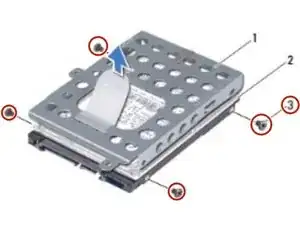

    • Remove the four screws that secure the hard-drive bracket to the hard drive.

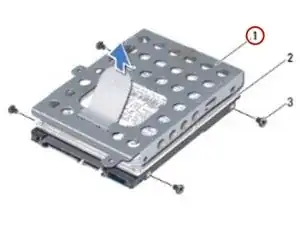

  5. 2AEekV5j1eZtfQYI

    • Lift the hard-drive bracket off the hard drive.

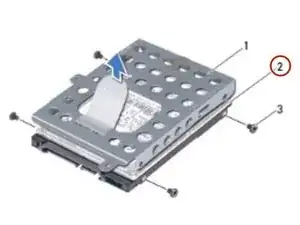

  6. P2oqTlseFWWpUBUH
    P2oqTlseFWWpUBUH

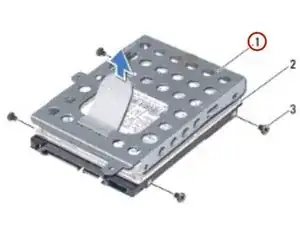

    d6d3loBrnQjAebyR

    • Place the hard drive in the hard-drive bracket.

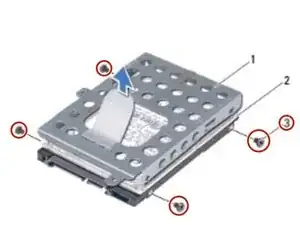

  7. 2ArmwGIRvfHRbFV3

    • Replace the four screws that secure the hard-drive bracket to the hard drive.

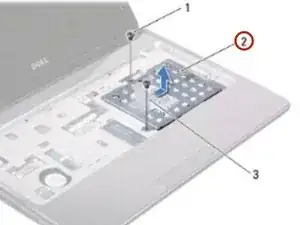

  8. S5fX32XYhUiHTvnp

    • Place the hard-drive assembly in the computer base.

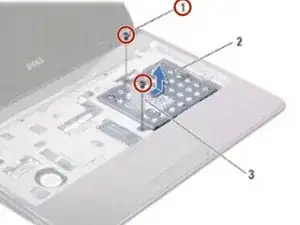

  9. ich6HnLKSBGRKrBW

    • Replace the two screws that secure the hard-drive assembly to the computer base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
