Dell Inspiron 11 3169 Battery Replacement

Geschrieben von: Terrence15

Kommentare: 0

Dell Inspiron 11 3169 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

1j5Pi1Y3mA3aNAXW

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your computer.
Remove the screw that secures the battery to the palm-rest and keyboard assembly.

Schritt 2

GVcvBJKXp11mZitA

Disconnect the battery cable from the system board.

Schritt 3

VRXjiqOFjuYCDXIQ

Lift the battery off the palm-rest and keyboard assembly.

Schritt 4

Turn the computer over.
Press and hold the power button for 5 seconds to ground the system board.

Schritt 5

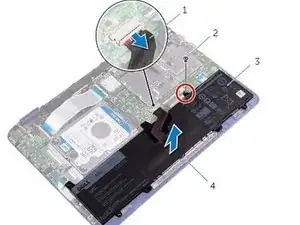

bBEFySn4o1GCwRfA

Align the screw hole on the battery with the screw hole on the palm-rest and keyboard assembly.

Schritt 6

wiP6XwsGYT2SYhHh

Replace the screw that secures the battery to the palm-rest and keyboard assembly.

Schritt 7

TY2omjqBcK3nhKsd

Connect the battery cable to the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
