Dell Inspiron 11 3169 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 11 3169 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

17

Zeitaufwand

20 - 45 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. SmaceuwvgMuOlMXw

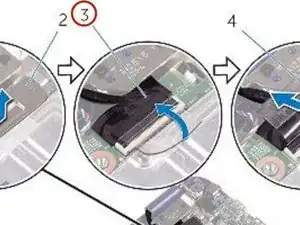

  2. 4UnmuUjZwTUFNHie

    • Lift the display-cable bracket off the system board.

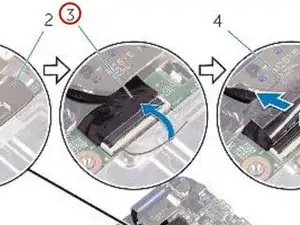

  3. 1VhQLEUdQH3fZQAE
    1VhQLEUdQH3fZQAE
    m1XIJimjQruyW4f2

    • Peel off the tape to access the display cable.

  4. mGE1KpVpNv1ZIbcA

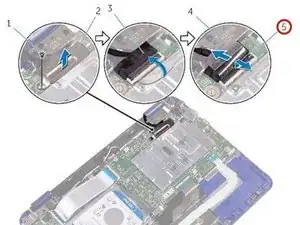

    • Open the latch and disconnect the display cable.

  5. 4pb3VghFQLEHnmys
    4pb3VghFQLEHnmys
    L2FrUw3OAoiOeShA
    3xkC3TrxYWgq255M

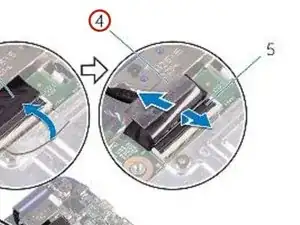

    • Open the latch and disconnect the sensor-board cable from the I/O board.

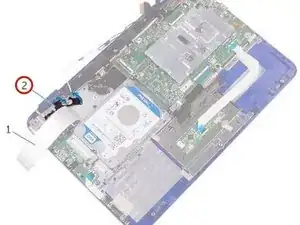

  6. t6QCRWRnHqmXiPyJ

    • Peel the tapes off the display hinges.

  7. hvnYWhWrVwx5cTPc

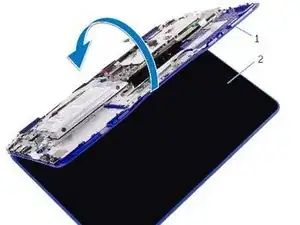

    • Turn the computer over and open the display as far as possible.

    • CAUTION: Place the computer on a soft and clean surface to avoid scratching the display.

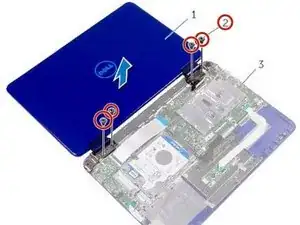

  8. ao2doNnVFwJhMk6F

    • Place the computer face down on a flat surface.

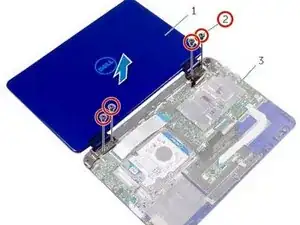

    • Remove the screws that secure the display assembly to the palm-rest and keyboard assembly.

  9. oETMSeSRd1mH6QCJ

    • Lift the display assembly off the palm-rest and keyboard assembly.

  10. WLvFcFSbKEiQVtY6

    • CAUTION: Place the computer on a soft and clean surface to avoid scratching the display.

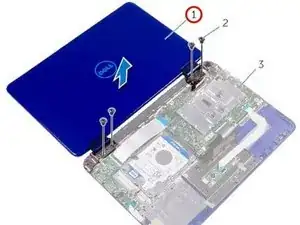

    • Place the display assembly on the palm-rest and keyboard assembly.

  11. WIYiWlkd1Ha2owAT

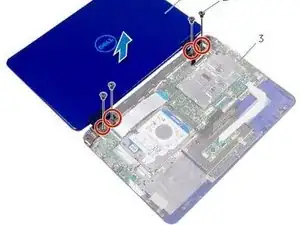

    • Align the screw holes on the display hinges with the screw holes on the palm-rest and keyboard assembly.

  12. ewkUUDTM1cYeoSak

    • Replace the screws that secure the display assembly to the palm-rest and keyboard assembly.

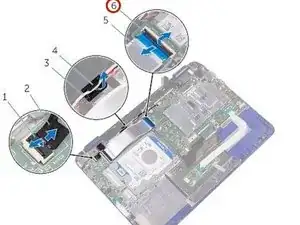

  13. SqkE46q32TmCnDSQ
    SqkE46q32TmCnDSQ
    f336sJ5KpIgYX1BN

    • Turn the computer over and close the display.

    • Slide the I/O-board cable into its slot on the system board and press down the latch to secure the cable.

  14. qdiAFAbevPgZ1qUk

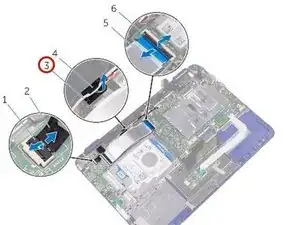

    • Route the antenna cable through its routing on the right speaker.

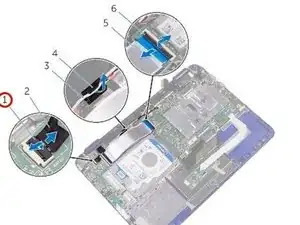

  15. TOTTltjQIKATaVpP
    TOTTltjQIKATaVpP
    SrJjmmKjE5YZOmjH

    • Slide the sensor-board cable into its slot on the I/O board and press down the latch to secure the cable.

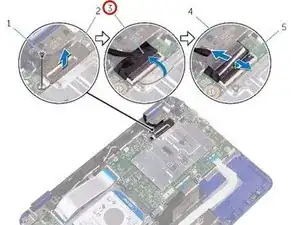

  16. uRpRkkLlhsBCAUWP

    • Slide the display cable into its slot on the system board and press down the latch to secure the cable.

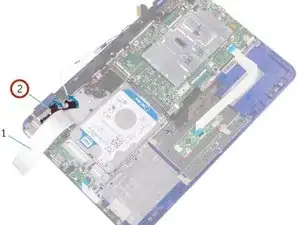

  17. nGKMuSdJMPBK6TmI

    • Adhere the tape on the display cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
