Dell Inspiron 11 3179 Battery Replacement

Geschrieben von: Terrence15

Kommentare: 0

Dell Inspiron 11 3179 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 30 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

GVBL2NZQ2OjSDnsK

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your computer.
Remove the screw that secures the battery to the palm-rest and keyboard assembly.

Schritt 2

TwMRhKNrZCJ5RjCB

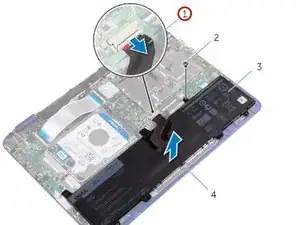

Disconnect the battery cable from the system board.

Schritt 3

Id5gTcdefIVgaRmq

Lift the battery off the palm-rest and keyboard assembly.

Schritt 4

Turn the computer over.
Press and hold the power button for 5 seconds to ground the system board.

Schritt 5

BGYHCWOvaZNoE412

Align the screw hole on the NEW battery with the screw hole on the palm-rest and keyboard assembly.

Schritt 6

DdyLdSvf1DGZfyxN

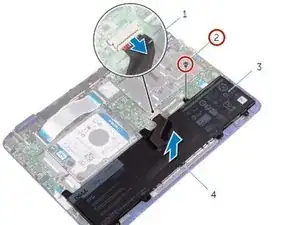

Replace the screw that secures the battery to the palm-rest and keyboard assembly.

Schritt 7

xilyjiyJSLtZrwWs

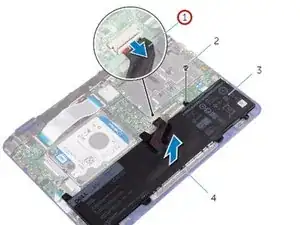

Connect the battery cable to the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
