Dell Inspiron 11 3179 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 11 3179 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

15 - 40 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. a64NRORlcBcLHHCH

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is in sleep or on state.

    • Remove the screw that secures the hard-drive assembly to the palm-rest and keyboard assembly.

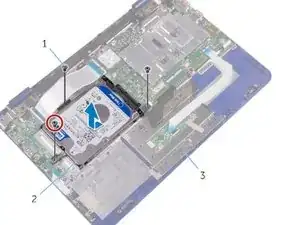

  2. QsKVSjOy34VfLvJA

    • Remove the screw that secures the hard-drive assembly to the system board.

  3. tcPvSju4AcSZVq11

    • Remove the screw that secures the hard-drive assembly to the I/O board.

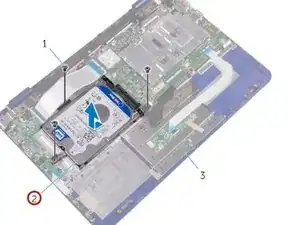

  4. KUkL1ArOigTCOiWr

    • Lift the hard-drive assembly off the palm-rest and keyboard assembly.

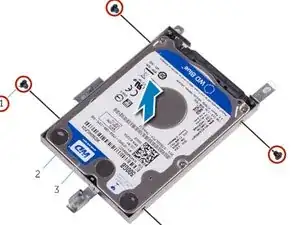

  5. vf4LfMsmLviDKxIs
    vf4LfMsmLviDKxIs

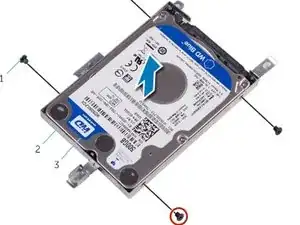

    ouBqRNZBvTtJeAgH

    • Remove the screws that secure the hard-drive bracket to the hard drive.

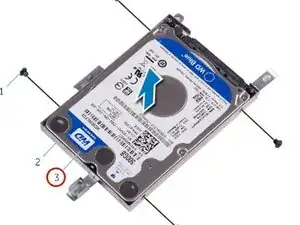

  6. UKbwXG5QsIeK1LfM

    • Lift the hard drive from the hard-drive bracket.

  7. hQI5BPs6dJC5GUBd

    • Align the screw holes on the NEW hard drive with the screw holes on the hard-drive bracket.

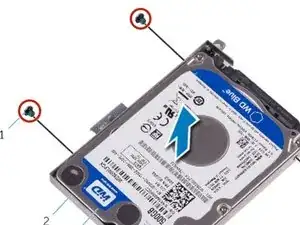

  8. 1Fp1OivushhWGpRZ
    1Fp1OivushhWGpRZ

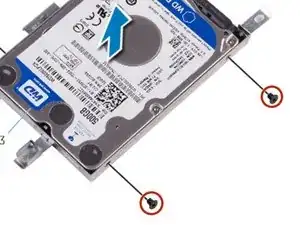

    NelApAGtfglZgJNo

    • Replace the screws that secure the hard-drive bracket to the hard drive.

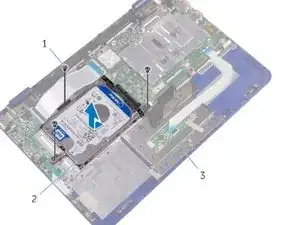

  9. cYYQsMZRUapSWJ2J

    • Align the screw holes on the hard-drive assembly with the screw holes on the palm-rest and keyboard assembly, system board and I/O board.

  10. L5p1yyTfrFrrWT4A

    • Replace the screws that secure the hard-drive assembly to the palm-rest and keyboard assembly, system board and I/O board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
