Dell Inspiron 11 i3147 Camera Replacement

Geschrieben von: Muhammad Erchid
  • Kommentare: 0
Dell Inspiron 11 i3147 Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

Keine Schätzung

Einleitung

  1. ZSXPnldaPqTSkXRw

    • Close the computer and turn it over, with the bottom of the computer facing up.

  2. YVReJYmfZZEFSihf

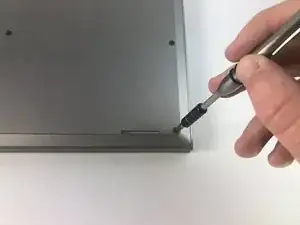

    • Remove the nine 7.6mm PH0 screws on the cover.

  3. AxHDR5gCkdcXCL2a

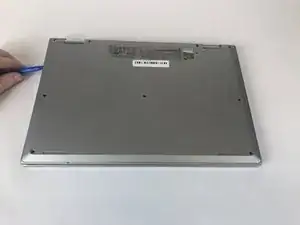

    • Use a plastic opening tool to remove the cover from the computer.

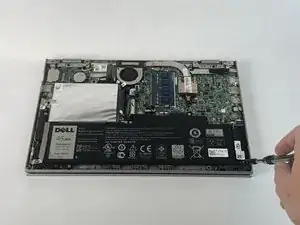

  4. aSKN6lyRAVElJjvk

    • Remove the three 4.7mm PH0 screws that secure the battery to the computer.

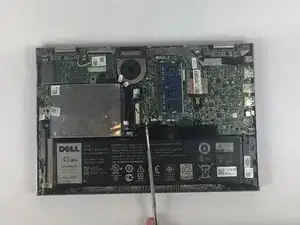

  5. wgkheuA33vG5hfxP

    • Remove the hard drive cable from the battery.

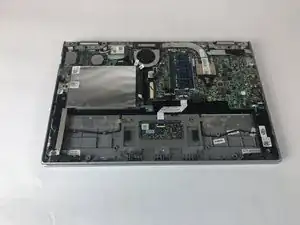

  6. ZyEHmdXrl3n2swml

    • Lift the battery from the keyboard.

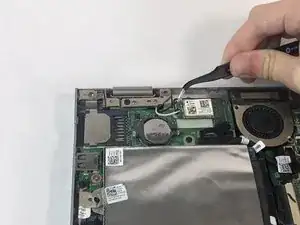

  7. nMpIJ3MLKGMWrWlD

    • Disconnect antenna cables.

  8. ABXAnRpMxsd2uVXu

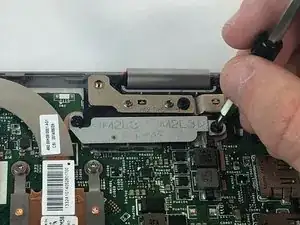

    • Remove 2 4mm PH0 screws that connect display cable bracket to the system board.

    • Lift display cable bracket off the system board.

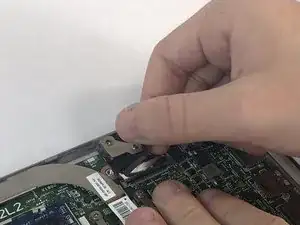

  9. r2RCJaufD1gWTRRY

    • Use the pull tab to disconnect the display cable from the system board.

  10. whXpMrjCFlXnJbH5

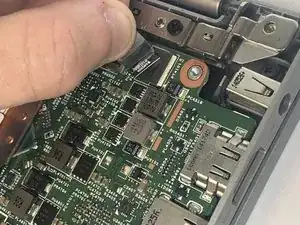

    • Pull the windows button board cable from the system board.

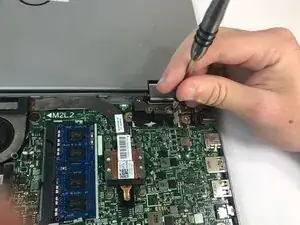

  11. IxZ1tLG5OPkABcdR

    • Remove the 2 5.6mm PH0 screws.

  12. gNAkBI5P5VoFaRpv

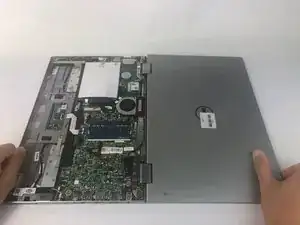

    • Separate the screen and body of the computer.

  13. wpRRWxuWIyf2M1g1
    wpRRWxuWIyf2M1g1
    xOrUMbSsSHr3lIvW

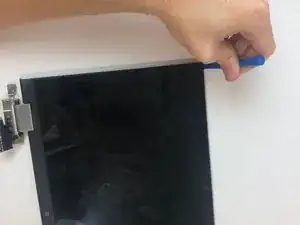

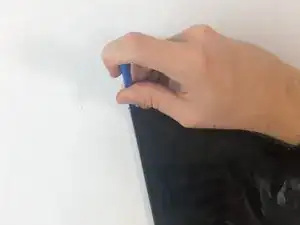

    • Use a plastic opening tool to take the display panel assembly off the display back cover and antenna assembly. Start from the top.

    • Place display panel face down on a flat surface

  15. ydMJOnBJvNdWk2jt

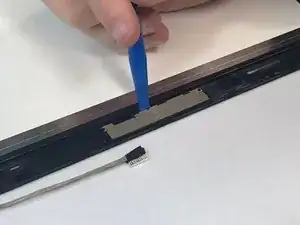

    • Use a plastic opening tool to take the camera module off the display.

Abschluss

To reassemble your device, follow these instructions in reverse order.
