Dell Inspiron 11-3138 Battery Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 11-3138 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 40 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

  1. RPHuGAQG1a2CQD5E

  2. TFPaeSDbUxbE5bdF

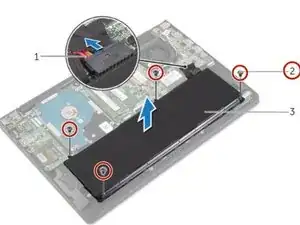

    • Remove the screws that secure the battery to the palm-rest assembly.

  3. vFDsRXSJa45Up6ls

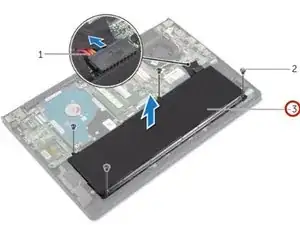

    • Lift the battery, along with its cable, off the palm-rest assembly.

    • Turn the computer over, open the display, and press the power button for about five seconds to ground the system board.

  5. KG6WIxRoUvgFkkP6

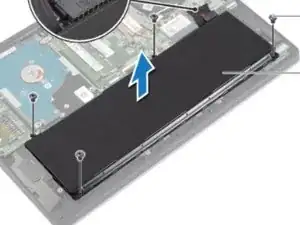

    • Align the screw holes on the battery with the screw holes on the palm-rest assembly and place the battery on the palm-rest assembly.

  6. DENDIRA2BICLWJZ6

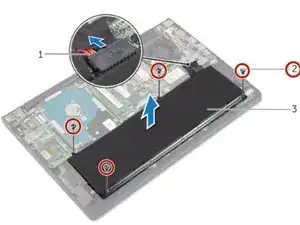

    • Replace the screws that secure the battery to the palm-rest assembly.

  7. lvoIftEreOhl2iRk

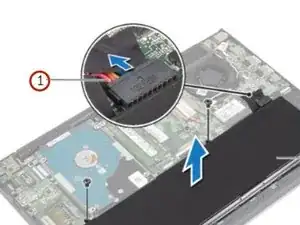

    • Connect the battery cable to the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
