Dell Inspiron 11-3138 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

9 - 45 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. sCVJJvwkTEJPPHV3

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before Working Inside Your Computer" After working inside your computer, follow the instructions in "After Working Inside Your Computer".

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is in Sleep or On state.

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Remove the screws that secure the hard-drive assembly to the palm-rest assembly.

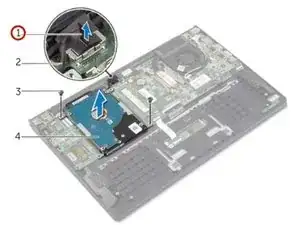

  2. EVqWkeQQadKQOxID
    EVqWkeQQadKQOxID

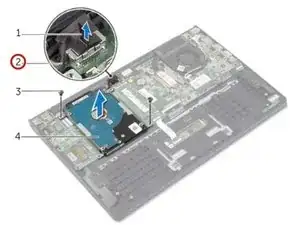

    u3dCfeDuMTE11OKP

    • Using the pull-tab, disconnect the hard drive cable from the system board.

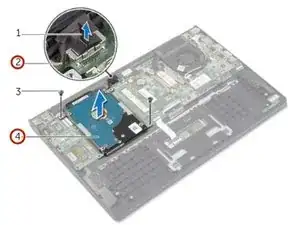

  3. pAlgGOZDWUV6EZtP

    • Lift the hard-drive assembly, along with its cable, off the palm-rest assembly.

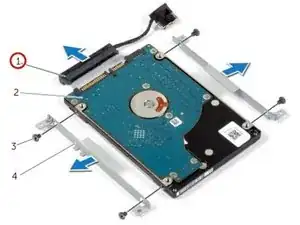

  4. pN6rXZPUwLpbFnBH

    • Disconnect the interposer from the hard drive.

  5. lf23DfNwoMyD1MIt

    • Remove the screws that secure the hard-drive brackets to the hard drive.

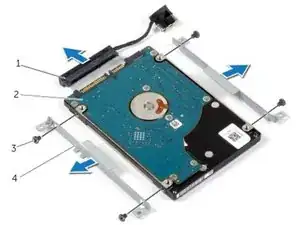

  6. CVeEyahS1xVqTB3n

    • Align the screw holes on the NEW hard drive with the screw holes on the hard-drive bracket.

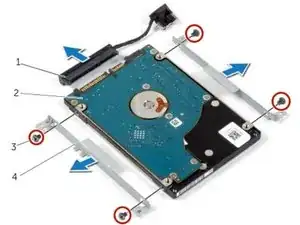

  7. E5cVJOWNagOQfwc6

    • Replace the screws that secure the hard-drive brackets to the hard drive.

  8. tsvVEtIkAPBKOxU6

    • Connect the interposer to the hard drive.

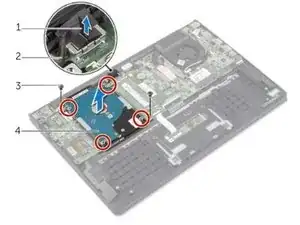

  9. kFOYAODFR4UChaRn

    • Align the screw holes on the hard-drive assembly with the screw holes on the palm-rest assembly.

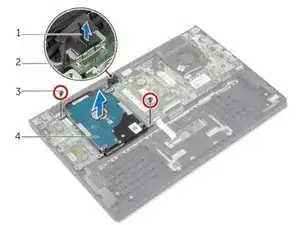

  10. NsDXUoucLDXLHXYZ

    • Replace the screws that secure the hard-drive assembly to the palm-rest assembly.

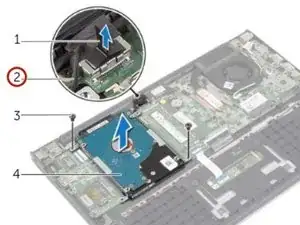

  11. TSZ6ADLaYMADWnxL

    • Connect the hard-drive cable to the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
