Dell Inspiron 11-3138 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 - 25 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. LH2OfFYLHECtNceE

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before Working Inside Your Computer" After working inside your computer, follow the instructions in "After Working Inside Your Computer".

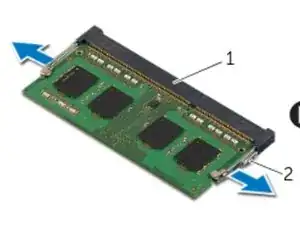

    • Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module connector until the memory module pops up.

  2. jyEufFTNEHghrP6b
    jyEufFTNEHghrP6b
    eFmEMhbLjyxhpvu4

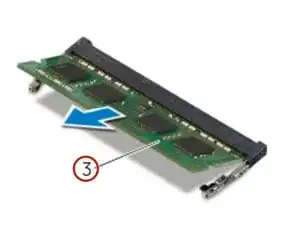

    • Remove the memory module from the memory-module connector.

  3. qKCG6LeCHJPij5PH

    • Align the notch on the NEW memory module with the tab on the memory-module connector.

  4. oZwpXArES2lyuCZE

    • Slide the memory module firmly into the connector at an angle and press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
