Dell Inspiron 11-3152 Back Panel Removal

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

6 Minuten

Einleitung

This guide is a Prerequisite Only to remove the back panel from the laptop.

  1. GpFK3cn32aOcjNn4
    GpFK3cn32aOcjNn4
    MwKE3H2RVtlvYLsX

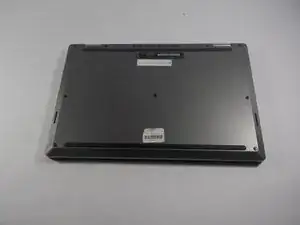

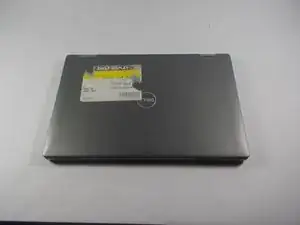

    • Flip the computer over.

  2. rZPQobEgYbgFfoHL
    rZPQobEgYbgFfoHL
    vQCQsTPqdnx6v3Ne

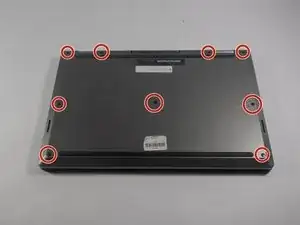

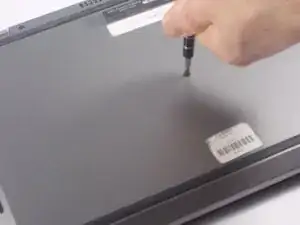

    • Remove all nine 5mm Phillips head screws from the back cover using #0 Phillips head.

  3. x6MYphwDPFZrpioY

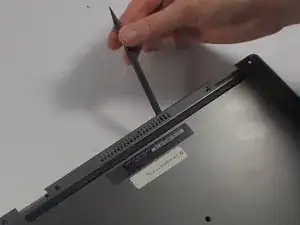

    • Gently use a spudger to pull the cover away from the rest of the laptop. The cover will come off after you use the tool on two or three sides.

Abschluss

To reassemble your device, follow these instructions in reverse order.
