Dell Inspiron 11-3162 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 1
Dell Inspiron 11-3162 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

15 - 35 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard drive.

  1. joYJvbY3TuvvSScZ

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • Remove the screws that secure the hard-drive assembly to the palm rest and keyboard assembly.

  2. kILWNbRcT3LpnLBX
    kILWNbRcT3LpnLBX

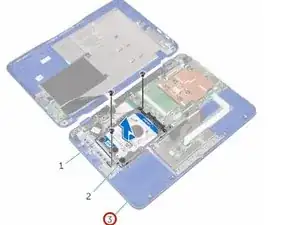

    2aLdEeKSOYXUf3PZ

    • Slide and lift the hard-drive assembly off the palm rest and keyboard assembly.

  3. saicwPC6D3GXvOON

    • Remove the screws that secure the hard-drive bracket to the hard drive.

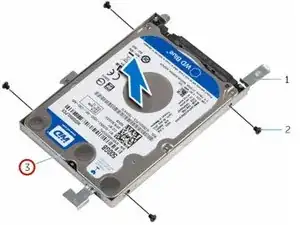

  4. n4HWBY3kvpRqSwQQ
    n4HWBY3kvpRqSwQQ
    QdBKGLIIHScXfMgd

    • Lift the hard drive from the hard-drive bracket.

  5. uXGjH3VMRZxRFNTT

    • Align the screw holes on the hard drive with the screw holes on the hard-drive bracket.

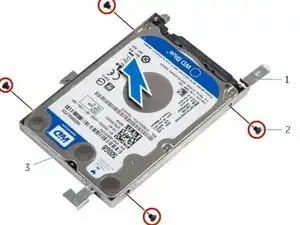

  6. CinBw416aCmIluk1

    • Replace the screws that secure the hard-drive bracket to the hard drive.

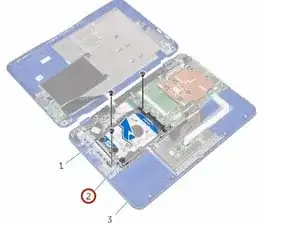

  7. CQWhMYUOFqgmUwPK

    • Slide and connect the hard-drive assembly to the connector on the system board.

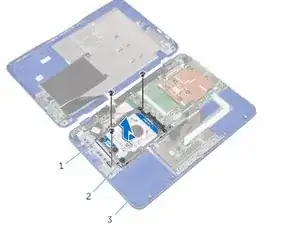

  8. ikMhNuAWoQcgT4Ou

    • Align the screw holes on the hard-drive assembly with the screw holes on the palm rest and keyboard assembly

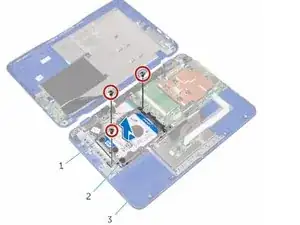

  9. iWCvdXZ5a3JVFxV2

    • Replace the screws that secure the hard-drive assembly to the palm rest and keyboard assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
