Dell Inspiron 11-3168 Hard Drive Replacement

Geschrieben von: Tyson Pace
  • Kommentare: 0
Dell Inspiron 11-3168 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show you how to replace the hard drive of the Dell Inspiron 11-3168. Before starting, make sure both the laptop AC adapter and battery are disconnected prior to replacing any part or component.

Note: This guide does not apply to Celeron eMMC systems. These have the storage space soldered to the board and require a motherboard replacement.

  1. JfFaTqOV5TqLQrr2
    JfFaTqOV5TqLQrr2
    dfORgWsjNlPcAEmx

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    • Using a Phillips #00 screwdriver, remove all nine 7.5mm screws from the bottom case of the laptop.

  2. EEFMlJjpbd2qkMTZ
    EEFMlJjpbd2qkMTZ
    5PKpE3YywDOSZATn
    jKNEWgMxbEo3cYd3

    • Remove the bottom case of the laptop by gently prying along the seam with a plastic opening tool.

  3. XiAXY1CaSuvhuYxq
    XiAXY1CaSuvhuYxq
    I16s4pwdO2OI4BYD

    • Remove the one 7.5mm screw that is holding the battery in place.

  4. TLODTSnTFXbdLASv
    TLODTSnTFXbdLASv
    xB6QYHPPkKOJNEgJ

    • Disconnect the battery cable from its motherboard socket by gently pulling it towards the battery.

    • Pull parallel to the battery, not straight up.

  5. y21iUmDlDmNSgCAU
    y21iUmDlDmNSgCAU
    frMcjMFRmQyhriAr
    IR2NXoFTIECGGSaI

    • Remove the battery.

  6. DiUENJAml3kJ5dXZ
    DiUENJAml3kJ5dXZ
    HcodsrscPSYNEwM2

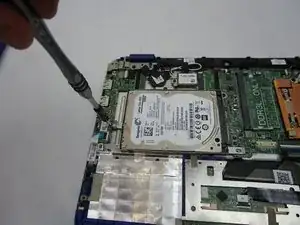

    • Unscrew the two 7.5 mm Phillips #00 screws.

  7. I15GA21mPXIxDSKW
    I15GA21mPXIxDSKW
    sEy1PqaiOipfdpH4
    kAU4j5PCPGPMa5Yi

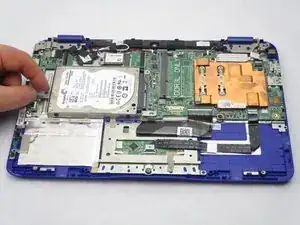

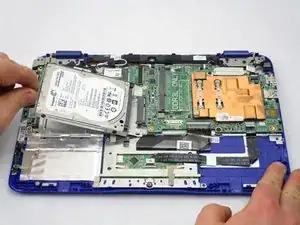

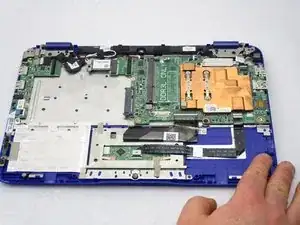

    • Lift the hard drive out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
