Einleitung
This guide will tell you how to replace your LCD screen. When working with screens, be careful about electrical discharges, and take steps to assure that the battery is disconnected for awhile before you follow this guide.
Tools
-
-

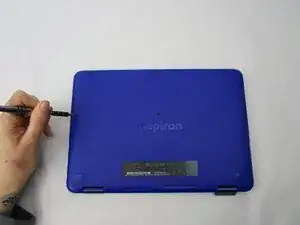

Using a Phillips #00 screwdriver, remove all nine 7.5mm screws from the bottom case of the laptop.
-
-
-

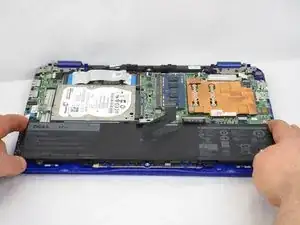

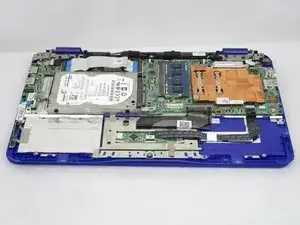

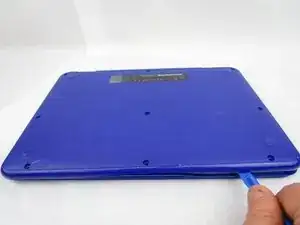

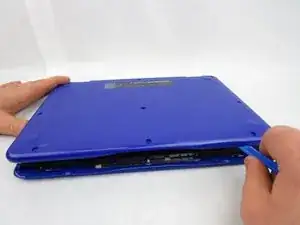

Remove the bottom case of the laptop by gently prying along the seam with a plastic opening tool.
-
-
-

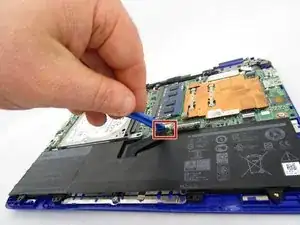

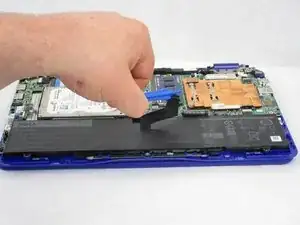

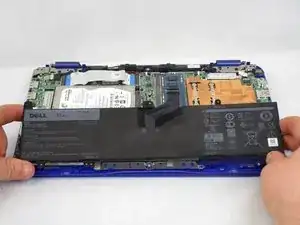

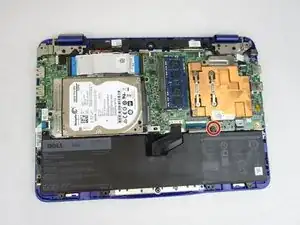

Disconnect the battery cable from its motherboard socket by gently pulling it towards the battery.
-
-
-
Carefully flip the laptop over so that the top case is facing up.
-

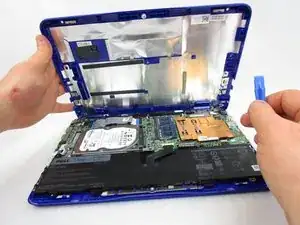

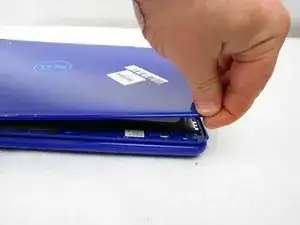

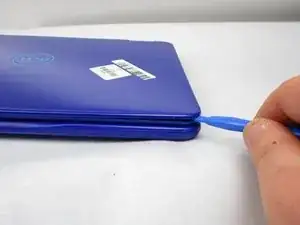

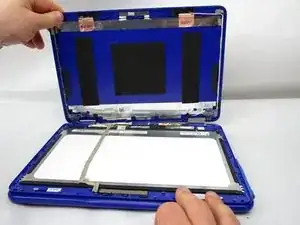

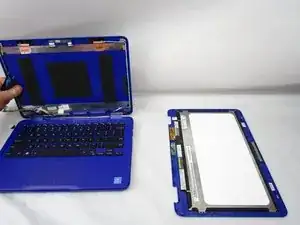

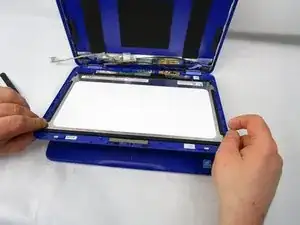

Remove the top case of the laptop by gently prying along the seam with a plastic opening tool.
-
-
-

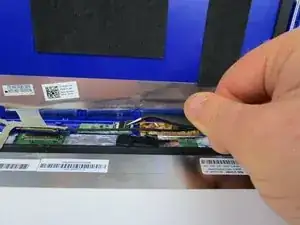

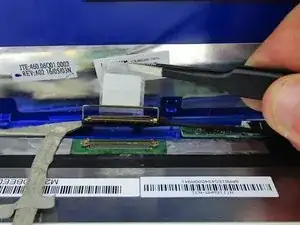

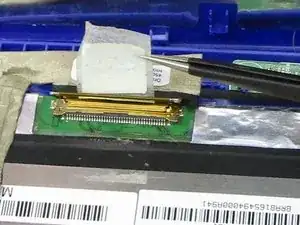

Use a pair of tweezers to grip the tape that is holding down the display cable clip.
-

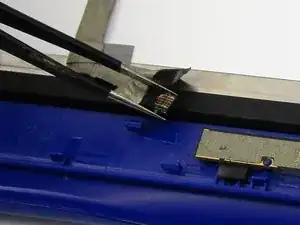

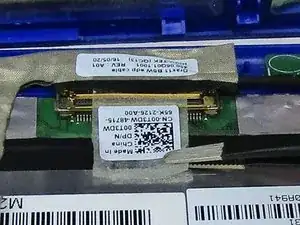

Gently unpeel the tape. This will release the clip that locks over the display connector socket.
-

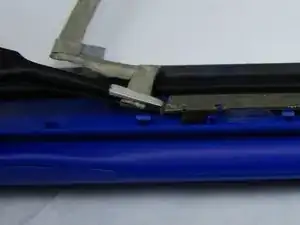

Once unclipped, remove the display cable from the socket.
-
-
-

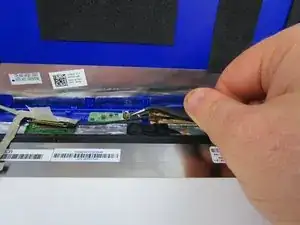

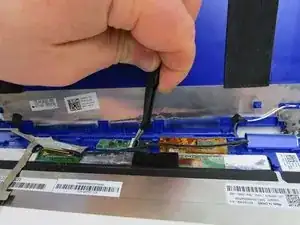

Find the smaller ZIF connector. Using tweezers, carefully lift the black flap on the connector to release the ribbon cable.
-
To reassemble your device, follow these instructions in reverse order.
