Dell Inspiron 1100 CD Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

1 - 2 Minuten

Einleitung

The CD Drive is used to read and write CDs. The CD Drive is delicate and can be easily broken which could lead to it needing replacement.

  1. pWARltk5ApCOmXFl
    pWARltk5ApCOmXFl
    e4rOnRmyBkGt6Xoq

    • Unscrew the one 8mm Phillips #0 screw immediately below the RAM compartment and remove the panel.

    • This screw locks the CD Drive into place and must be completely removed before proceeding.

  2. KfR4KlvZrwB1ki3Y
    KfR4KlvZrwB1ki3Y
    4BmTyQBYkVXPBV3Z
    NlPxddysAvm6PDHM

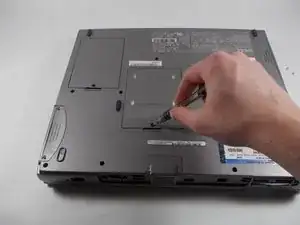

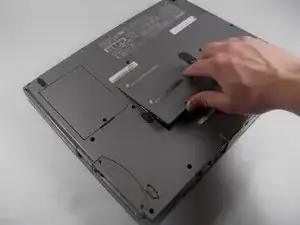

    • Unscrew the one Phillips #0 screw at the bottom of the RAM compartment cover, and remove the RAM compartment cover.

    • The screw does not separate from the cover. Be careful when using force to remove the cover. Also be sure that the screw has been completely unscrewed.

  3. 4gEKQQxY6LoY4AVU
    4gEKQQxY6LoY4AVU
    R5IirbFe1SXCNhCq

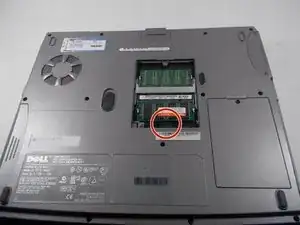

    • Push and hold the switch inside the RAM compartment to the right.

    • This will cause the CD Drive to be slightly pushed out of its slot.

    • If the switch cannot be moved, check to make sure you have completed the first step in this guide.

  4. 16Zae1laZHwmWBZu
    16Zae1laZHwmWBZu
    M5AtXuReYWCFTHar

    • While holding down the switch in the RAM compartment, pull out the CD Drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
