Dell Inspiron 1100 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

4 - 5 Minuten

Einleitung

The keyboard is necessary for operating the Dell Inspiron 1100 and is used for various tasks such as typing or navigating the computer.

  1. Em2WLQFm5RyCxsIY
    Em2WLQFm5RyCxsIY
    DYtiDAk4Jtx3Ru1k
    2okxJaTk5LcW15gY

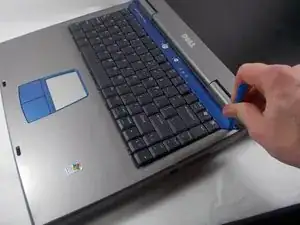

    • Remove the plastic face plate from the laptop using the iFixit Plastic Opening Tool.

    • Start by inserting the iFixit Plastic Opening Tool into the groove on the right side of the face plate.

    • This step does require some force. Be careful to not bend or break the plastic face plate.

  2. KpTqOn5Rbth1TAFl
    KpTqOn5Rbth1TAFl
    R5KBR3AaamOv5X5P

    • Remove the four 3mm Phillips #0 screws securing the keyboard.

  3. XQrYRXge2oJCxGaJ

    • Lift up the keyboard to expose the ribbon header on the motherboard.

    • Be careful as the keyboard can only move a little ways from the surface of the laptop and is easily damaged.

  4. 6iv4X1OjNljvLCam
    6iv4X1OjNljvLCam
    weVCp1G1SlEFfGUy

    • Grip the ribbon on its hard plastic connector, and pull the ribbon and its connector out of the motherboard header.

    • Do not pull on the ribbon itself, as this may cause internal damage to the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
