Dell Inspiron 1100 Wireless Card Replacement

Geschrieben von: Alexander Pacheco

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

3 Minuten

Einleitung

The wireless card enables the laptop to connect to wireless signals.

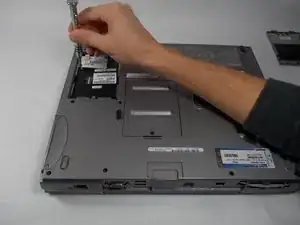

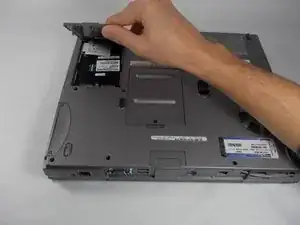

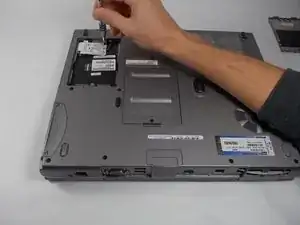

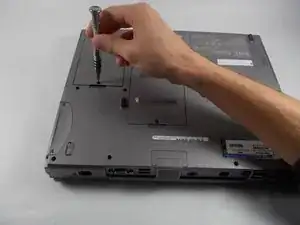

Unscrew the one Phillips #0 screw at the bottom of the panel and remove the panel.
The screw does not separate from the cover. Be sure the screw is completely unscrewed before using force to remove the cover.

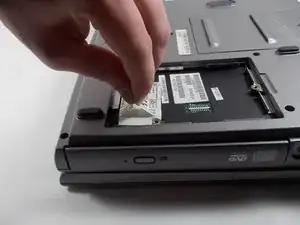

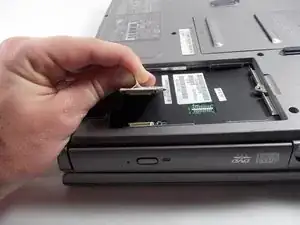

Pull the white plastic tab on top of the card straight up to remove the card.
This step requires some light force. Be sure the screws from the previous step have been removed.

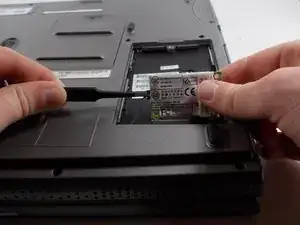

Use blunt nose tweezers to remove the power cable from the wireless card.
Make sure the tweezers are only gripping the head of the power cable and not any part of the wireless card, as this may damage the card.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Mitglied seit: 19/10/16

610 Reputation

I believe that is a phone modem, not a wireless card. Might be wrong though.

i think your right as dell 1100 dont have a wifi slot only can use usb or pcmcia card
