Dell Inspiron 1122 M102z Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1122 M102z Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

9 - 20 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. RwdYTRLR5jSCUcj5

    • Follow the instructions in Before You Begin.

    • Disconnect the Mini-Card antenna cables from the Mini-Card(s).

  2. SGIVL2KCDLvFapSb

    • Make note of the cable routing and carefully dislodge the Mini-Card antenna cables from the routing guides.

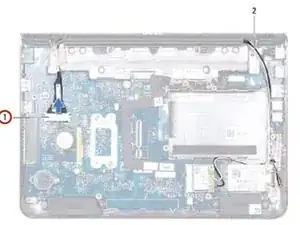

  3. jb3MypxAbsiMRYUh

    • Disconnect the display cable from the system board connector.

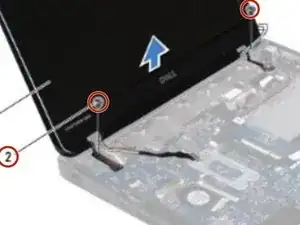

  4. 4FWeZ3KQbYhUr1fX

    • Remove the two screws (one on each side) that secure the display assembly to the computer base.

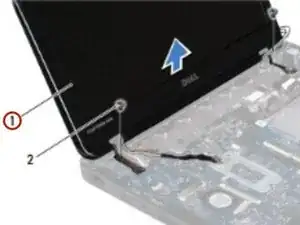

  5. b6iCVHvLxNopKesQ

    • Lift and remove the display assembly off the computer base.

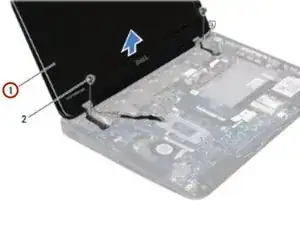

  6. UtlXCUIDUA1vfFBL

    • Place the NEW display assembly in position and replace the two screws (one on each side) that secure the display assembly to the computer base.

  7. UJeEZOiZvTnAopdZ

    • Connect the display cable to the system board connector.

  8. F4GCcFilgTYI4OyQ

    • Route the Mini-Card antenna cables through the routing guides on the computer base.

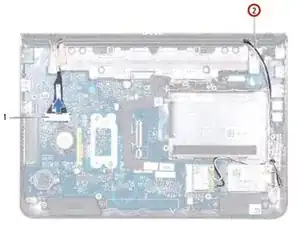

  9. IotMUJHNjGZaFDGr

    • Connect the Mini-Card antenna cables to the Mini-Card(s).

Abschluss

To reassemble your device, follow these instructions in reverse order.
