Dell Inspiron 1122 M102z Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1122 M102z Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 25 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

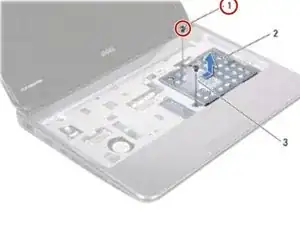

  1. WGjuPeTHCIsljDWr

    • Follow the instructions in Before You Begin.

    • Remove the two screws that secure the hard-drive assembly to the computer base.

  2. ht1fnCfNyycq1Gwe

    • Using the pull-tab, slide the hard-drive assembly to the side to disconnect it from the connector on the system board.

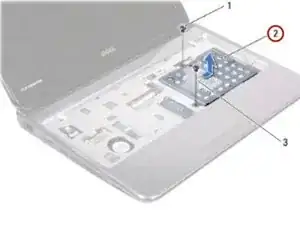

  3. VwNGCfvwZSpFiO5K

    • Lift the hard-drive assembly out of the computer base.

  4. SjTdUpuusu6gldYb

    • Remove the four screws that secure the hard-drive bracket to the hard drive.

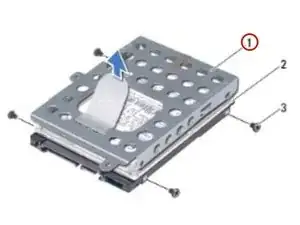

  5. dTtTHjPLLrgjqXEK

    • Lift the hard-drive bracket off the hard drive.

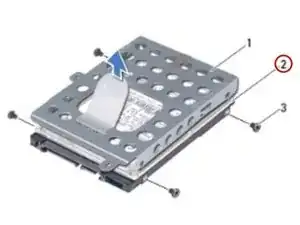

  6. V4BUPALum3UXhjRO

    • Place the NEW hard drive in the hard-drive bracket.

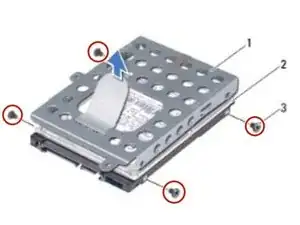

  7. HUkaIH2OSPQpVoVD

    • Replace the four screws that secure the hard-drive bracket to the hard drive.

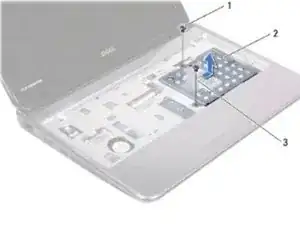

  8. ZMMMUk2aUilnCqFc

    • Place the hard-drive assembly in the computer base.

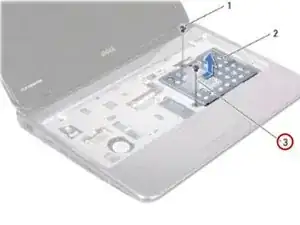

  9. ndgAQFCdQXvQ1yOP

    • Using the pull-tab, slide the hard-drive assembly into the connector on the system board.

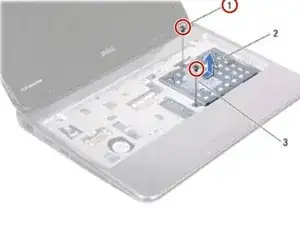

  10. vBlyyPYVWWK3lcNo

    • Replace the two screws that secure the hard-drive assembly to the computer base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
