Dell Inspiron 1122 M102z Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1122 M102z Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

15 - 30 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. bgouLR5kT6aXGSLB

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Slide the battery release latches to the unlock position.

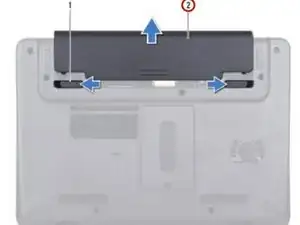

  2. lQNuulQJDMAZN4VG

    • Slide the battery out of the battery bay.

  3. ssOJBUqD2hrUPP4t

    • Slide the battery into the battery bay, until it clicks into place.

  4. 4IC2ZpGmtOQpmi1c

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • Loosen the captive screw that secures the memory-module cover to the computer base.

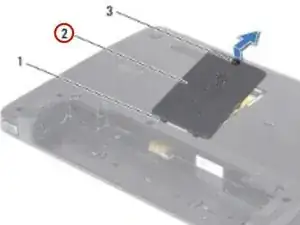

  5. slNj3UnSbybJVoIW

    • Lift the memory-module cover off the computer base.

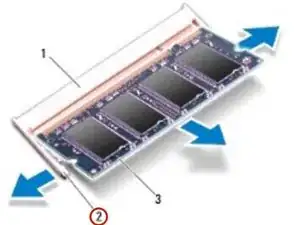

  6. y5GiDusIVFuHJ2Yr

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the memory module pops up.

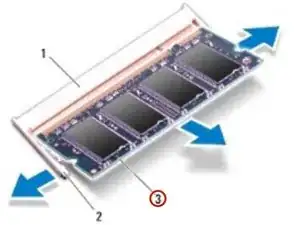

  7. YrcJoVomXYA3yetN

    • Remove the memory module from the memory-module connector.

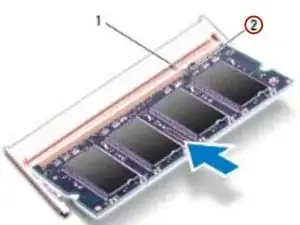

  8. RZlyYwQQWAXnFKkL

    • CAUTION: If you need to install memory modules in two connectors, install a memory module in the lower connector before you install a memory module in the upper connector.

    • Align the notch in the NEW memory module with the tab in the memory-module connector.

  9. uK6CgMSmn1D2Khf1

    • Slide the memory module firmly into the memory-module connector at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.

  10. D5T1sbySBMmfltSV

    • Slide the tabs on the memory-module cover into the slots on the computer base and gently press the memory-module cover into place.

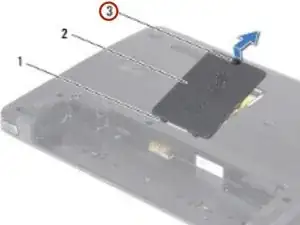

  11. EVBlb3DKfVAcDPrH

    • Tighten the screw that secures the memory-module cover to the computer base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
