Dell Inspiron 11z 1110 Battery Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 11z 1110 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 - 25 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

  1. wZxSEjeMEmQgYhUP

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • Turn the computer over.

    • Slide the battery lock latch and the battery release latch to the unlock position.

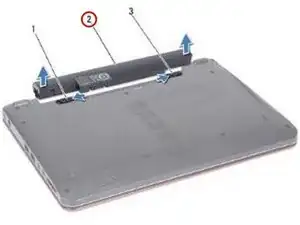

  2. JrxtoKmFGJKh11dP

    • Pull the battery up and out of the battery bay.

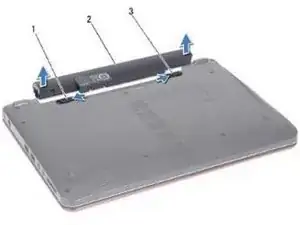

  3. HYHW4Lyi2mVMq6Qs

    • CAUTION: To avoid damage to the computer, use only the battery designed for this particular Dell computer. Do not use batteries designed for other Dell computers.

    • Align the slots on the battery with the tabs in the battery bay.

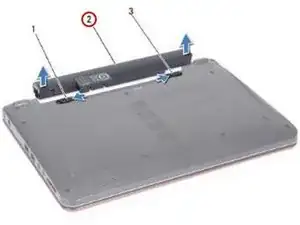

  4. 1mMiCxoHQuO2mVZh

    • Push the battery in place till it snaps into place.

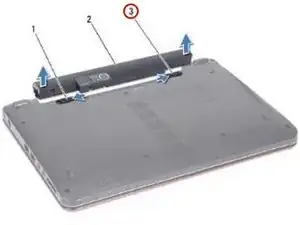

  5. UrxwhfHUbFY4q2xr

    • Slide the battery lock latch to the lock position.

Abschluss

To reassemble your device, follow these instructions in reverse order.
