Dell Inspiron 11z 1110 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 11z 1110 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 - 35 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. Nib3GMgbXc4ZGchG

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Make note of the cable routing and carefully dislodge the Mini-Card antenna cables from the routing guides.

  2. KdOKPZscZHtysi6E

    • Disconnect the display cable and the camera cable from the system board connectors.

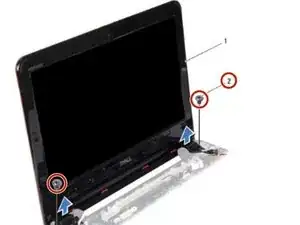

  3. ePA1FqVAW5ZpGVPy

    • Remove the two screws (one on each side) that secure the display assembly to the computer base.

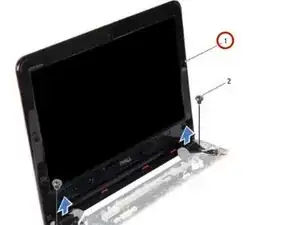

  4. OZwWRPeiwYJmJtd4

    • Lift the display assembly off the computer.

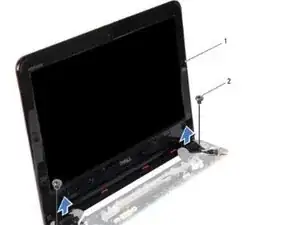

  5. D2oQYAmGvLo1WDT4

    • Place the NEW display assembly in position and replace the two screws (one on each side) that secure the display assembly to the computer base.

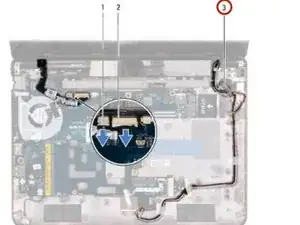

  6. VeoXfo1vupqyHhUx

    • Route the Mini-Card antenna cables through the routing guides.

Abschluss

To reassemble your device, follow these instructions in reverse order.
