Dell Inspiron 11z 1120 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 11z 1120 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

15 - 30 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. pFOwOO2HbPQnJFII

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • WARNING: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Remove the two screws that secure the hard-drive assembly to the computer base.

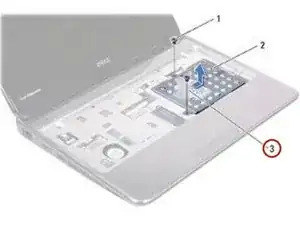

  2. fUDogkaeynEDJ1JA
    fUDogkaeynEDJ1JA

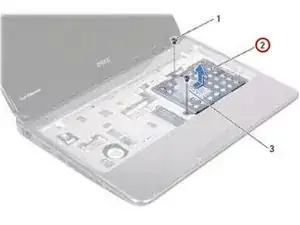

    mQxVJGud6GvAolKY

    • Using the pull-tab, slide the hard-drive assembly to the side to disconnect it from the connector on the system board.

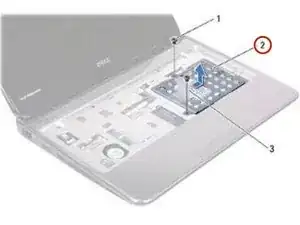

  3. ivbHjfYRdBnNxVt2

    • Lift the hard-drive assembly out of the computer base.

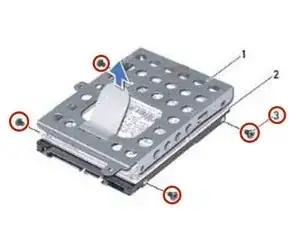

  4. CZoGBrn1TVMxAE1r

    • Remove the four screws that secure the hard-drive bracket to the hard drive.

  5. EhDwKT3oNtyhepwj

    • Lift the hard-drive bracket off the hard drive.

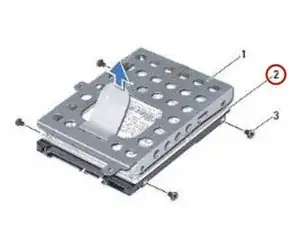

  6. TW62cLiIhAJF6Crp

    • Place the NEW hard drive in the hard-drive bracket.

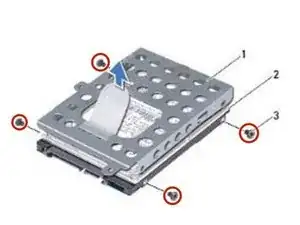

  7. bQVstuOJxTFC4jPs

    • Replace the four screws that secure the hard-drive bracket to the hard drive.

  8. sZvvVEkNCwaxocFd

    • Place the hard-drive assembly in the computer base.

  9. QiGGxonIrhfKvilA

    • Using the pull-tab, slide the hard-drive assembly into the connector on the system board.

  10. n1M4ogBmdCiYse3a

    • Replace the two screws that secure the hard-drive assembly to the computer base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
