Dell Inspiron 11z-1121 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 11z-1121 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

10 - 30 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. VVNLAaWtjPpjSeFV

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • Disconnect the Mini-Card antenna cables from the Mini-Card(s).

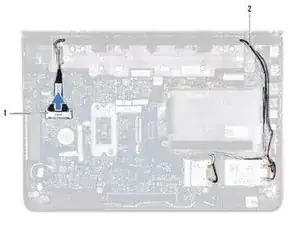

  2. YKv4fXMV5RDiflnY

    • Make note of the cable routing and carefully dislodge the Mini-Card antenna cables from the routing guides.

  3. WSuhAFZaKujfhJro

    • Disconnect the display cable from the system board connector.

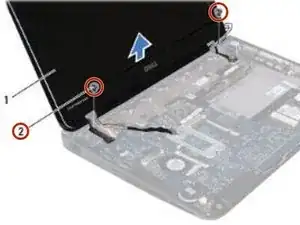

  4. MYefxSdeFvLmSfeZ

    • Remove the two screws (one on each side) that secure the display assembly to the computer base.

  5. 15k3WMxSvqPRmske

    • Lift and remove the display assembly off the computer base.

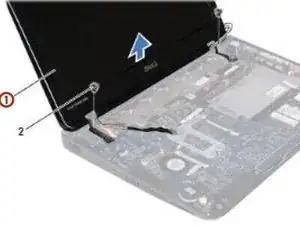

  6. QQUTgWTT36fLPUUa

    • Place the NEW display assembly in position and replace the two screws (one on each side) that secure the display assembly to the computer base.

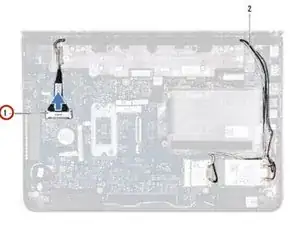

  7. 125jZ6yveGGQ4Euq

    • Connect the display cable to the system board connector.

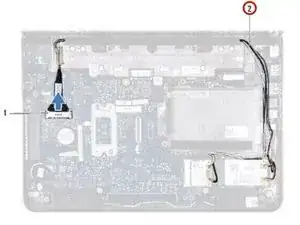

  8. kE1VhpeBYA5qWKj3

    • Route the Mini-Card antenna cables through the routing guides on the computer base.

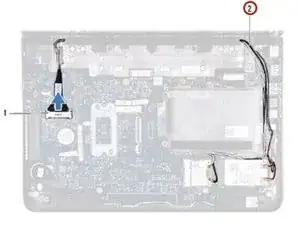

  9. X2cl2iRthfrhR6fD

    • Connect the Mini-Card antenna cables to the Mini-Card(s).

Abschluss

To reassemble your device, follow these instructions in reverse order.
