Dell Inspiron 11z-1121 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide is going to teach users how to remove and replace the keyboard on a Dell Inspiron 11z-1121. Sometimes the keys on a keyboard may become unresponsive; this guide is a useful tool that can be used to fix the problem.

  1. akxXgwxmgJOTuot3
    akxXgwxmgJOTuot3
    xZBxpl1Z4mVckBdF

    • Slide the latches outward to release the battery.

    • Pull the battery outward to remove.

    • The latches should lock in place, allowing for easy removal.

    • The battery must be removed for safety reasons when replacing other components of the laptop.

  2. XecikE15LkNBVg2Z
    XecikE15LkNBVg2Z
    4wxyIxk5ljVerWiu

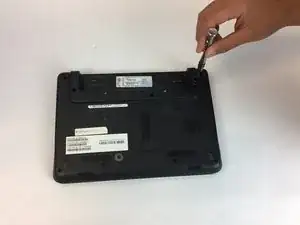

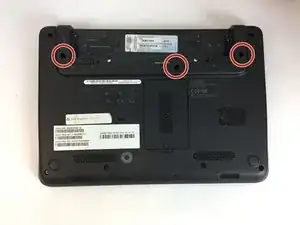

    • Unscrew three black 1mm screws using the PH1 Phillips-head screwdriver on the bottom of the laptop around the battery.

  3. x1h5natyJohiUOvj
    x1h5natyJohiUOvj
    4bDqPHHdRXBAHkPf

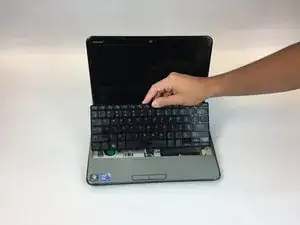

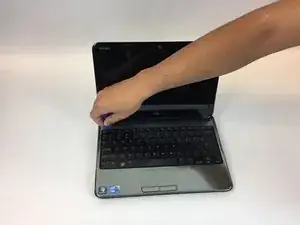

    • Flip the laptop over and open it to expose the keyboard.

    • Use a plastic opening tool to pry up the keyboard, starting in the upper corner and working your way around.

    • Once the keyboard is pried up, do not remove the keyboard. There is still a ribbon attaching the keyboard to the laptop.

  4. yKn4xSF5oJdckhWR
    yKn4xSF5oJdckhWR
    FbuxSyOlFQlgl3iD

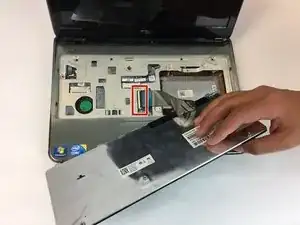

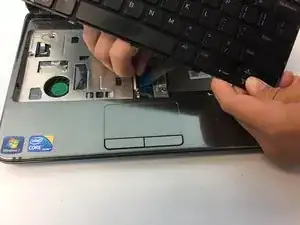

    • Lift the keyboard to expose the ribbon attaching the keyboard to the laptop.

    • Flip up the black retaining flap on the ZIF connector and then pull the ribbon cable away.

    • Remove the keyboard from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
