Dell Inspiron 11z-1121 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 11z-1121 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

8 - 15 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Modules.

  1. HYca1Hx6UYkaGSGD

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Loosen the captive screw that secures the memory-module cover to the computer base.

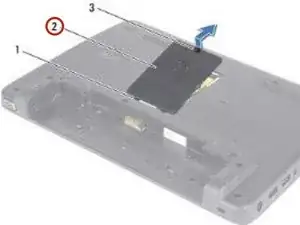

  2. WpthIZQttDl1AIMa

    • Lift the memory-module cover off the computer base.

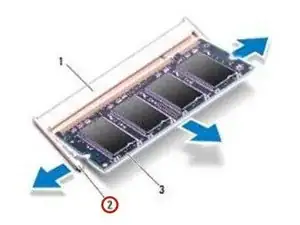

  3. w6WZ6nxfuAXidDj4

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the memory module pops up.

  4. o4TrSeFI4diQLUma

    • Remove the memory module from the memory-module connector.

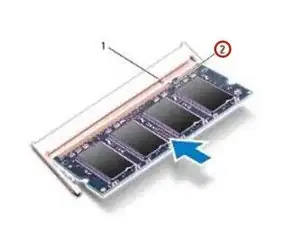

  5. COHDPNvkjQBomnSw

    • Align the notch in the NEW memory module with the tab in the memory-module connector.

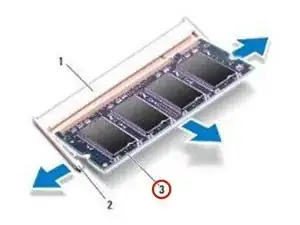

  6. s1phruWAJMjLdRNs
    s1phruWAJMjLdRNs

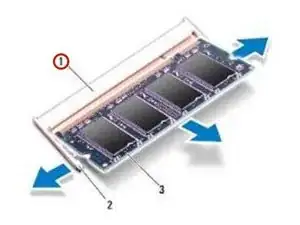

    it1y6PED1guum4JY

    • Slide the memory module firmly into the memory-module connector at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.

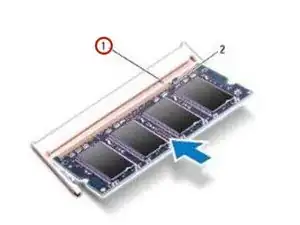

  7. uPHEO5cOWmvuHwBr

    • Slide the tabs on the memory-module cover into the slots on the computer base and gently press the memory-module cover into place.

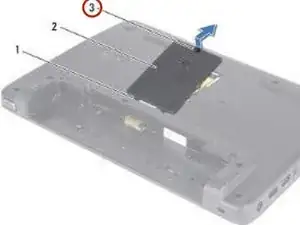

  8. PL4WZNSIMNnp1Axh

    • Tighten the screw that secures the memory-module cover to the computer base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
