Dell Inspiron 1200 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1200 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

10 - 35 Minuten

Einleitung

In this guide, we will show you how to remove the Display Assembly.

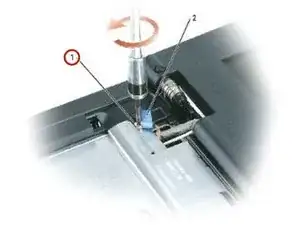

  1. BQJ1DTgNfgnmHGdf
    BQJ1DTgNfgnmHGdf
    TDfVIBCDwoyS6kdb

  2. ZFXqcLwyplUEuXII

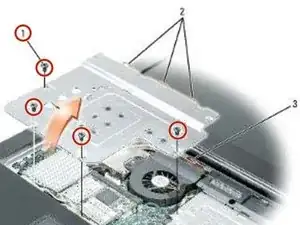

    • Remove the four M2.5 x 5-mm screws (labeled "M2.5x5") that secure the EMI shield to the system board.

  3. LN1hfC6dCbwhRQGn

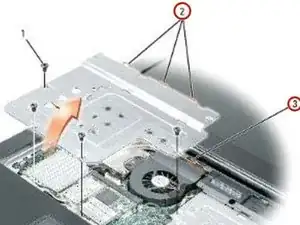

    • Pull the EMI shield out of the computer baseby rotating the front upwards then lifting to release the retention tabs from the retention-tab slots.

  4. 6xZp3M3ktwtJBhmP

    • Disconnect the attached antenna cable from the Mini PCI card.

    • Close the display.

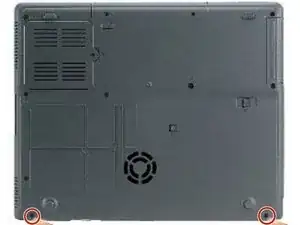

    • From the bottom of the computer, remove the two M2.5 x 5-mm screws labeled "D."

  6. oySsto6nKMjNKIKj

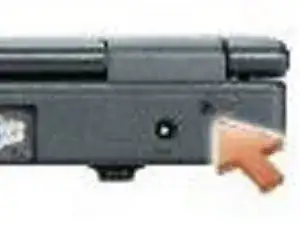

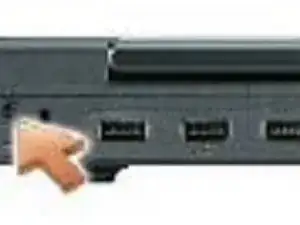

    • From the back of the computer, remove the two M2.5 x 8-mm screws labeled "D."

  7. SnYldYajm5UKSElU
    SnYldYajm5UKSElU
    hpgEbCEtNSIWOGa5

    • Pull straight up on the pull-tab that is attached to the display-feed flex cable to disconnect the cable from the system board.

  8. rNQcsVoiaMmxDtPQ

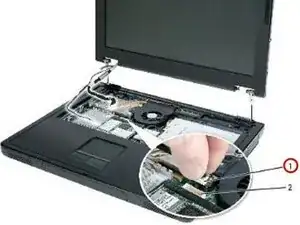

    • Carefully remove the Mini PCI card antenna cable and the display cables from their routing guides.

  9. oInoSiKGP2PasuCI

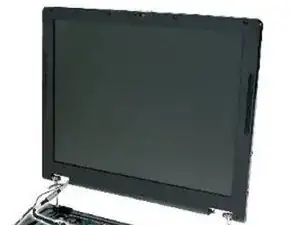

    • Lift the display assembly out of the computer base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
