Dell Inspiron 1200 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 35 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. lFdNgkbIKaB5MEqW

  2. WYISQBK1MT2NjE5Z

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

  3. vEPadUvTNqQd6gms

    • Remove the module from the connector.

  4. GhhQyGnw4XcfbMHE

    • NOTE: If the memory module is not installed properly, the computer may not boot properly. No error message indicates this failure.

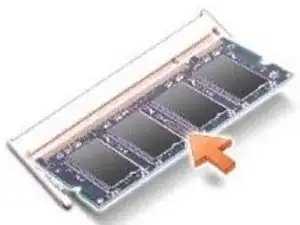

    • Align the notch in the module edge connector with the tab in the connector slot.

  5. HtWWRFCwFcPRhVDK

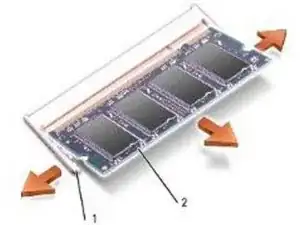

    • Slide the NEW module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove the module and reinstall it.

  6. qsODUSAMlskSiH1k
    qsODUSAMlskSiH1k
    LIlL1mbsJCqbjJbo

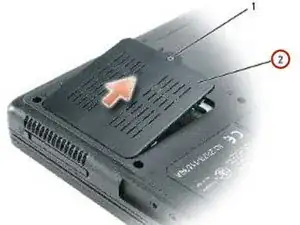

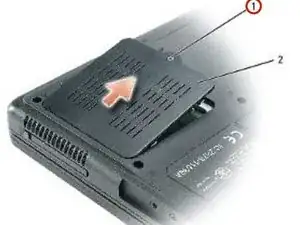

    • Replace the cover and tighten the captive screw.
