Dell Inspiron 13 7378 Wi-Fi Card Replacement

Geschrieben von: Samantha Gonzalez
  • Kommentare: 0
Dell Inspiron 13 7378 Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

Does your Wi-Fi from your Dell Inspiron 13 7378 not connect to a network? This guide will help you walk through replacing your Wi-Fi card and get you back on the web.

The Wi-Fi card is the part of the laptop's way of connecting to a Wi-Fi network. The Wi-Fi card is a very small 1 inch square located on the motherboard which can easily be broken if the steps are not followed correctly.

  1. YSThvhlDvFlUIs23

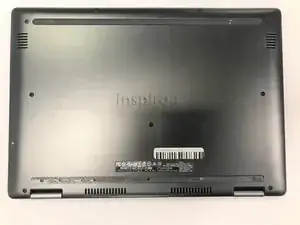

    • Place the laptop with the bottom side facing upwards.

  2. bX2UP2QbRaHV56mX
    bX2UP2QbRaHV56mX
    pRYSrOXthag5FHVo

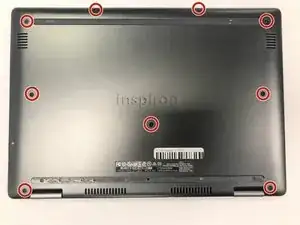

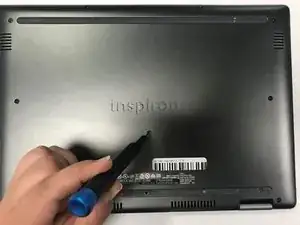

    • Remove the nine 3 mm screws from the back of the laptop using a Phillips #00 screwdriver.

  3. ec4l52CDiXNH4NAV
    ec4l52CDiXNH4NAV
    eDVIQqqonG1x6LLh
    SUHIumXpihFraCMq

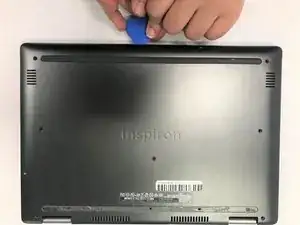

    • Carefully pry open the back of the back of the laptop using opening picks.

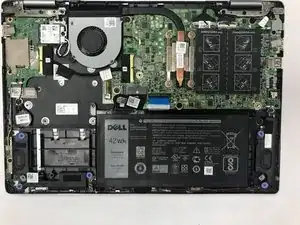

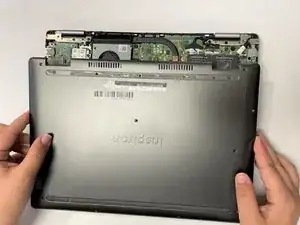

    • Lift the back cover away from the laptop.

    • Be careful not to damage or crack the back cover of the device.

  4. xYvev6Dwf4QXA4a4
    xYvev6Dwf4QXA4a4
    TO2ahdDp2a1xgpPf

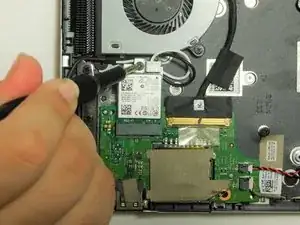

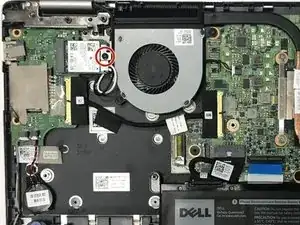

    • Remove the single 3 mm screw from the Wi-Fi card using a Phillips #1 screwdriver.

  5. H2jHQl1XV2GDFElj

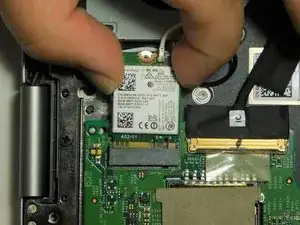

    • Use your fingers to pull the Wi-Fi card upwards from the slot of the motherboard.

    • Take caution in pulling out the Wi-Fi card; two cable connectors are still attached.

  6. WenCIPUrCdchGxZD

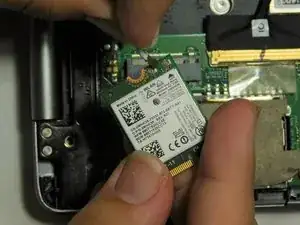

    • Disconnect the two wires attached to the Wi-Fi card.

    • Remove the Wi-Fi card from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
