Dell Inspiron 13 N3010 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

50 Sekunden - 3 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Battery.

  1. vaS5lKp1jgEGMOv5

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer)

    • Turn the computer over.

    • Slide the battery lock latch to the unlock position.

  2. d1NrdQPDZNQKVyvN

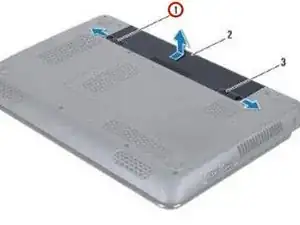

    • Slide the battery release latch to the side.

  3. GFSZXIegNgYmOLRd

    • Slide and lift the battery out of the battery bay.

  4. 1bt3IxwbadRVqGZC

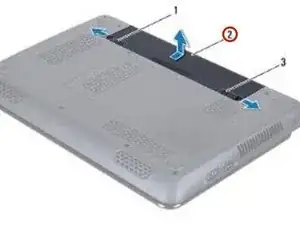

    • Slide the NEW battery into the battery bay, until it clicks into place.

  5. n6JnBJ4JSXjrZ6L5

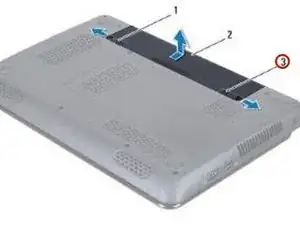

    • Slide the battery lock latch to the lock position.

Abschluss

To reassemble your device, follow these instructions in reverse order.
