Dell Inspiron 13 N3010 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 13 N3010 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

4 - 8 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Modules.

  1. ErKtnOPeUyVtUTke

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: To prevent damage to the memory-module connector, do not use tools to spread the memory module securing clips.

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the memory module pops up.

  2. VLNXJiPvBgZGpNKK
    VLNXJiPvBgZGpNKK
    VrQmdfq3fxUcHlKH

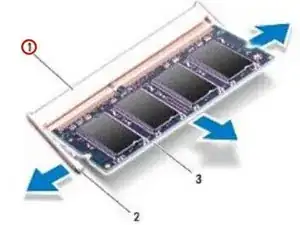

    • Remove the memory module from the memory-module connector.

  3. HV2bomUSB6wqjtNJ

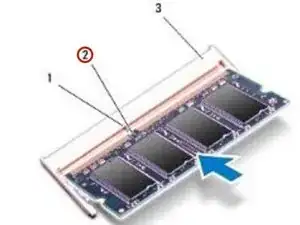

    • Align the notch in the NEW memory module with the tab in the memory- module connector.

  4. mMlkgBHMBEtG6wTj

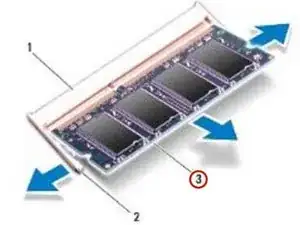

    • Slide the memory module firmly into the connector at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
