Dell Inspiron 13-5368 Fan Replacement

Geschrieben von: Matt Sugrim
  • Kommentare: 2
Dell Inspiron 13-5368 Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This is a simple step-by-step guide on how to remove and replace a fan for a Dell Inspiron 13-5368. You will need a Philips Head J-0 screwdriver and a pry tool in order to perform this task. This is a relatively easy task to complete and will take about 7 minutes.

  1. YGxGEaifNhHbAYMT
    YGxGEaifNhHbAYMT
    STXteWiGpNgEvcmd

    • Remove the nine 6mm Phillips #0 screws that secure the back cover of the laptop.

    Note that Dell Inspiron 13s have had a rash of bad batteries that swell as they age, causing them to press hard against the trackpad. This can cause it to track poorly or make it difficult or impossible to left or right click the pad. Replacing the bad battery often fixes these kind of trackpad issues on these models where the battery is directly under the trackpad.

    Heath Connett -

  2. ZqC5OmtrKBlcDxYh
    ZqC5OmtrKBlcDxYh
    EgR4OadWgOWMPxYe

    • Use a spudger to pry up and remove the back cover.

  3. IVBwTyULE5PRybLx

    • Remove the four 3mm Phillips #0 screws at the corners of the battery that secure it to the laptop.

  4. iFLtoIVVywSClyXV

    • Pull the battery cable's black tab towards the battery to disconnect it from the motherboard.

    • Pull the tab parallel to the motherboard, not straight up.

    In what direction should I pull the tab. And how should I hold it

    Bam -

  5. iNoZKiCrLyqo1lFC
    iNoZKiCrLyqo1lFC
    rohJufRohoinoMcl

    • Remove the battery.

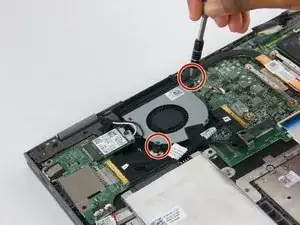

  6. v5ZSfDBe2SLJQFwX

    • Remove the 2mm X 3mm screws that are securing the fan.

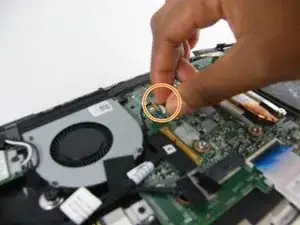

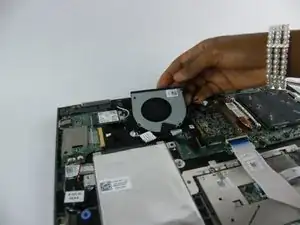

  7. EOXbj6NBvyLff2Lf
    EOXbj6NBvyLff2Lf
    FNcExSvJn4tPtkkM

    • Unplug the fan from the motherboard, then remove the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
