This is a simple step-by-step guide on how to remove and replace a screen display for a Dell Inspiron 13-5368. You will need a Philips Head J-0 screwdriver and a pry tool in order to perform this task. This is a relatively easy task and will take about 8 minutes to complete.
-
-
Remove the four 3mm Phillips #0 screws at the corners of the battery that secure it to the laptop.
-
-
-
Pull the battery cable's black tab towards the battery to disconnect it from the motherboard.
-
-
-

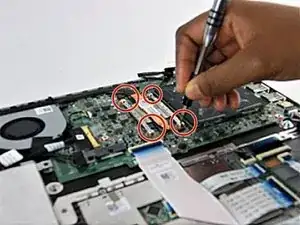

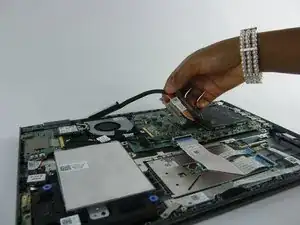

Unscrew the four screws securing the heatsink and remove it.
-
Remember to reapply a small amount of thermal paste, then screw the heatsink onto the motherboard in numberical order (i.e. 1, 2, 3, 4).
-
Remember to clean off any old thermal paste, then apply a small amount of new thermal paste (dime size will be fine). Screw the heatsink on in numerical order so the thermal paste is evenly distributed on the processor. To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
Is it normal for the heatsink to be loose right in front of the fan? The black part of the heatsink?
JRaje -
Note that Dell Inspiron 13s have had a rash of bad batteries that swell as they age, causing them to press hard against the trackpad. This can cause it to track poorly or make it difficult or impossible to left or right click the pad. Replacing the bad battery often fixes these kind of trackpad issues on these models where the battery is directly under the trackpad.
Heath Connett -
